[ إدارة المشتريات والتوريدات ] عارية رمح مضخة كهربائية مع مضخة حريق

ملاحظة فنية
· نموذج EN733 القياسية مضخة الطرد المركزي
· نقاء التصميم الأصلي ( براءات الاختراع )
· غلاف المضخة مع طلاء مضادة للتآكل
· الفولاذ المقاوم للصدأ ايسي 304 أو الحديد الزهر المكره
· YE3 عالية الكفاءة للسيارات ، وحماية الصف IP55 واو
· غلاف المضخة مع طلاء مضادة للتآكل
· ارتداء مقاومة الأختام الميكانيكية
· م وافق مضخة مياه
· رمح مصنوع من الفولاذ المقاوم للصدأ ايسي 304 أو الحديد المجلفن
3D PRODUCT CHAT NOW

Product Description





Product Description


PSM(PS+YE3)

PS

TECHNICAL DESCRIPTION

New EN733 standard centrifugal pump

Original design by PURITY (patented)

Both square motor & round motor available

YE3 high efficient motor, with protection IP55 class F

Pump case with anti-corrosive coating

Impeller in stainless steel AISI 304 or cast iron

Shaft in stainless steel AISI 304 or galvanized iron

Galvanized counter flange with bolts, nuts and gaskets

Quality NSK bearing, wear resistance mechanical seal


APPLICATIONS

Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The EN733 centrifugal pumps are recommended for use in water supply,

cleaning sets, pressure boosting, firefighting sets, irrigation, industrial

applications, water circulation in climatisation sets, agricultural.


USING LIMITS

Liquid temperature between -10℃ and +120℃

Ambient temperature up to +50℃

Max. working pressure 16 bar

Continuous service S1


PATENTS

Registered model PST

Registered Patent Design n°201530478502.0

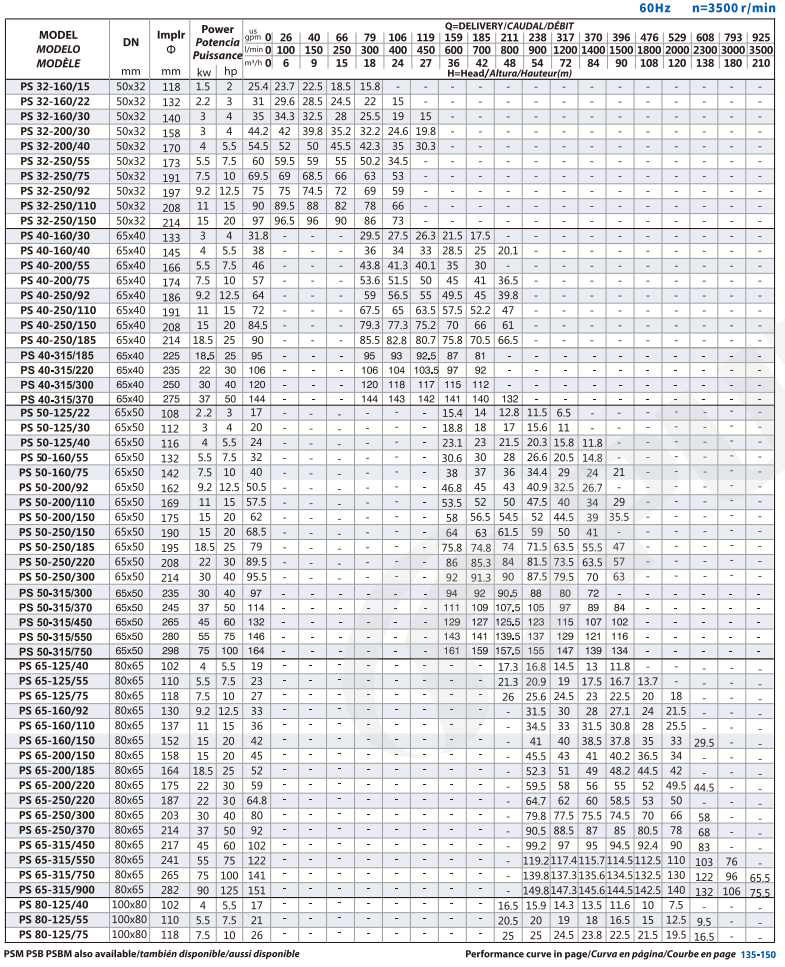

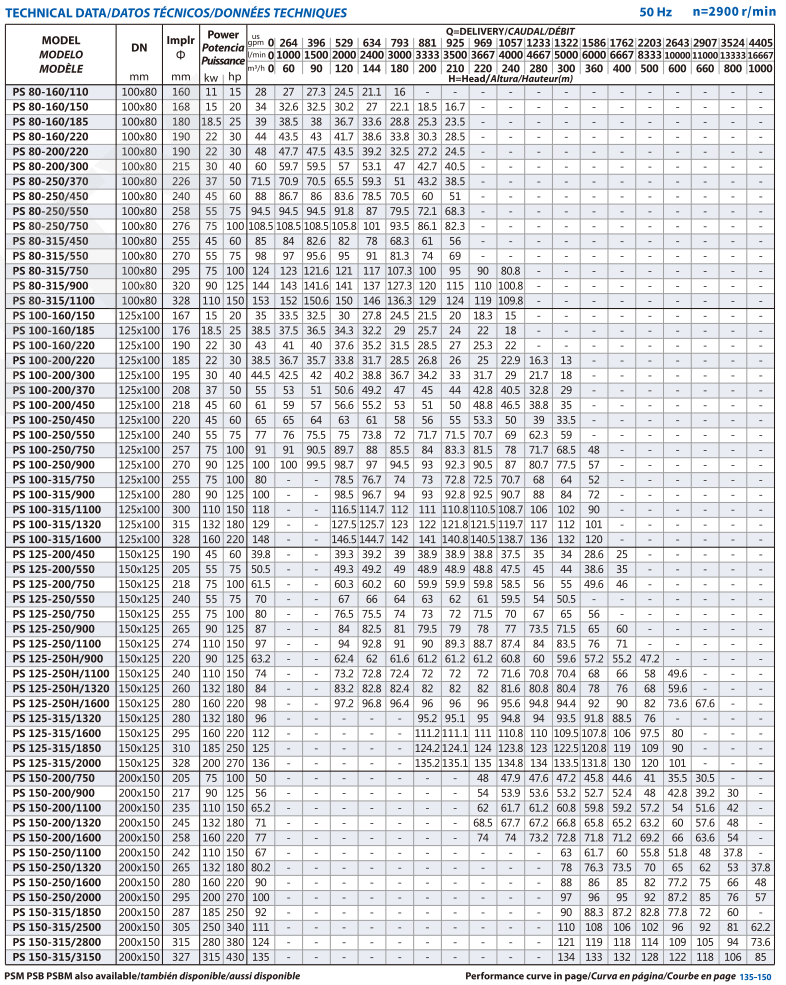

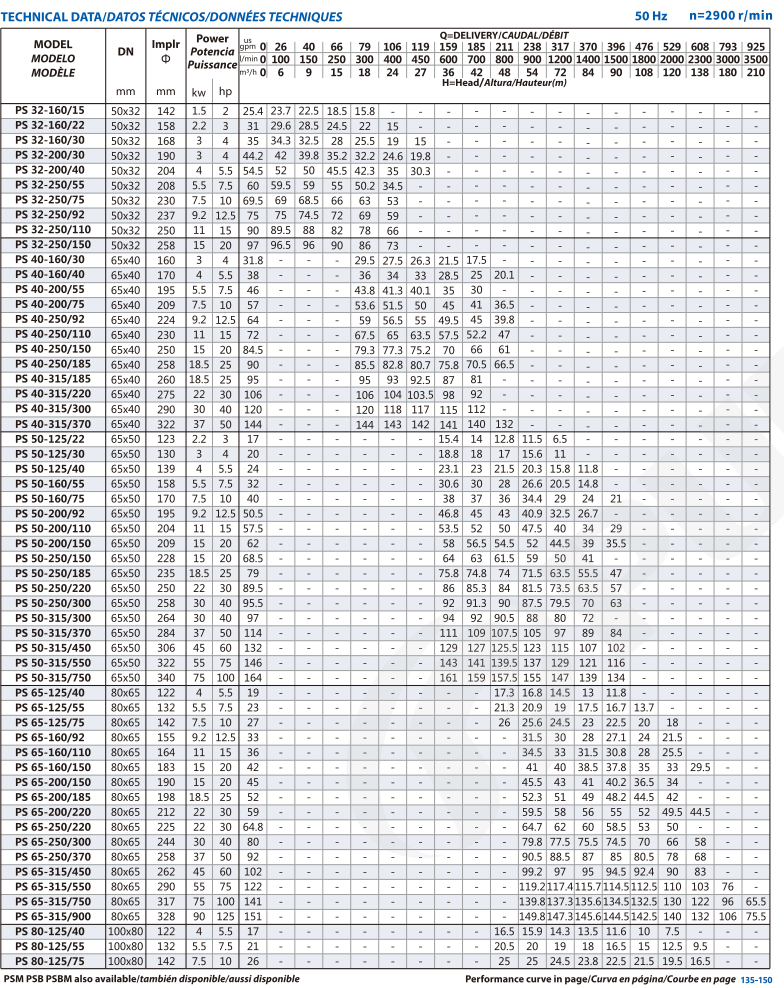

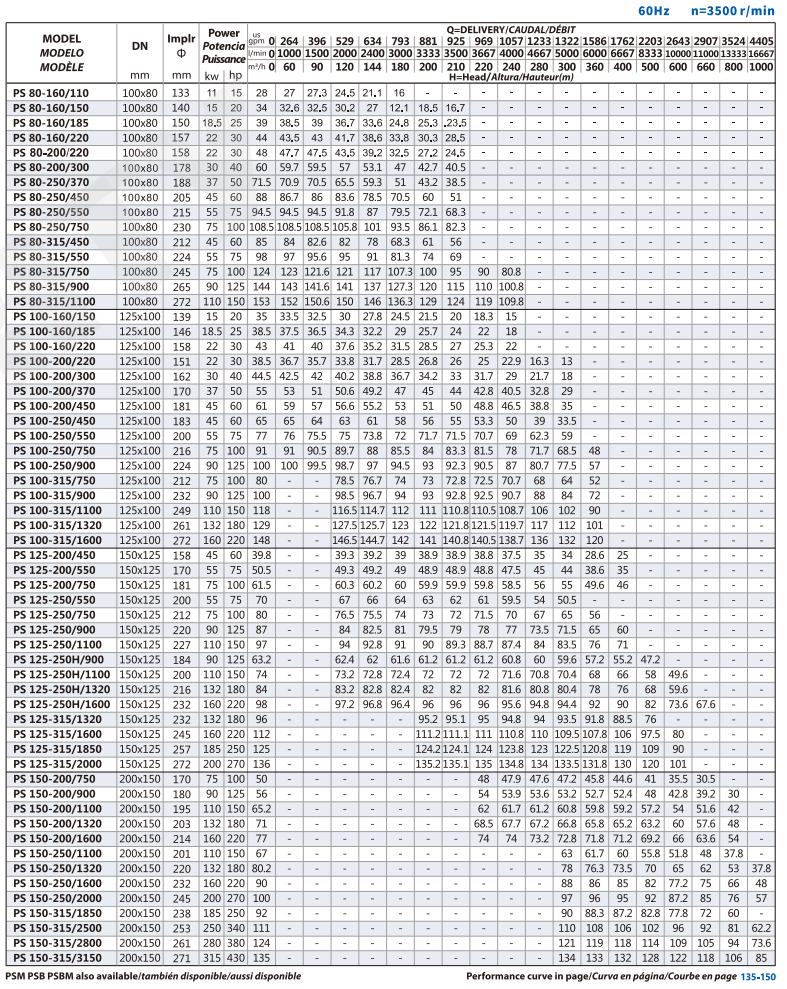

TECHNICAL DATA


Other Sizes  Can Provide On Request.


Contact Us


Please send inquiry to mina@cnpurity.com for prompt reply !


PS


DIMENSIONS AND WEIGHT


Production Line


Packaging & Shipping


Our Exhibition



Certifications



Product Description





Product Description


PSM(PS+YE3)

PS

TECHNICAL DESCRIPTION

New EN733 standard centrifugal pump

Original design by PURITY (patented)

Both square motor & round motor available

YE3 high efficient motor, with protection IP55 class F

Pump case with anti-corrosive coating

Impeller in stainless steel AISI 304 or cast iron

Shaft in stainless steel AISI 304 or galvanized iron

Galvanized counter flange with bolts, nuts and gaskets

Quality NSK bearing, wear resistance mechanical seal


APPLICATIONS

Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The EN733 centrifugal pumps are recommended for use in water supply,

cleaning sets, pressure boosting, firefighting sets, irrigation, industrial

applications, water circulation in climatisation sets, agricultural.


USING LIMITS

Liquid temperature between -10℃ and +120℃

Ambient temperature up to +50℃

Max. working pressure 16 bar

Continuous service S1


PATENTS

Registered model PST

Registered Patent Design n°201530478502.0


TECHNICAL DATA


Other Sizes  Can Provide On Request.


Contact Us


Please send inquiry to mina@cnpurity.com for prompt reply !


PS


DIMENSIONS AND WEIGHT


Production Line


Packaging & Shipping


Our Exhibition



Certifications
