[ P2C ] سطح مزدوج المكره مضخة الطرد المركزي مضخة الطرد المركزي الأسعار

ملاحظة فنية
· رواية مزدوجة المكره مضخة الطرد المركزي
· التصميم الأصلي النقي
· المحركات الكهربائية مربع ومحركات دائرية متوفرة
· YE3 عالية الكفاءة للسيارات ، وحماية الصف IP55 واو
· غلاف المضخة مع طلاء مضادة للتآكل
· نحاس مزدوج المكره
· رمح مصنوع من الفولاذ المقاوم للصدأ ايسي 304 أو الحديد المجلفن
· مدخل ومخرج في مجموعة العشرين الخيوط
· محامل NSK عالية الجودة ، وارتداء مقاومة الأختام الميكانيكية
3D PRODUCT CHAT NOW

Product Description



TECHNICAL DESCRIPTION
New double impeller centrifugal pump
Original design by PURITY
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Double impeller in brass
Shaft in stainless steel AISI 304 or galvanized iron
Suction and discharge port in G20 thread
Quality NSK bearing, wear resistance mechanical seal


APPLICATIONS
Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.
The high efficiency and adaptability of these pumps to even the most

unusual of applications, makes them ideal for use in the domestic,

civil and industrial sectors; in particular for the distribution of water in

combination with pressure sets, for pressure boosting and in fire-fighting sets.


USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1

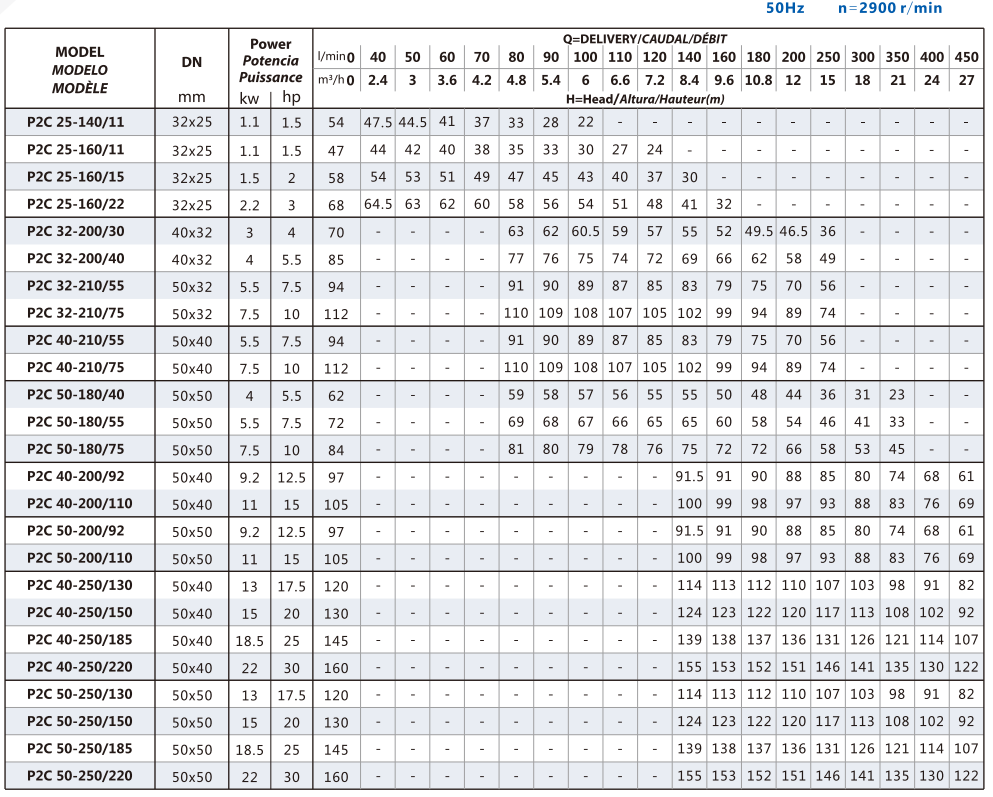

TECHNICAL DATA                                                                                     50hz             2900l/min

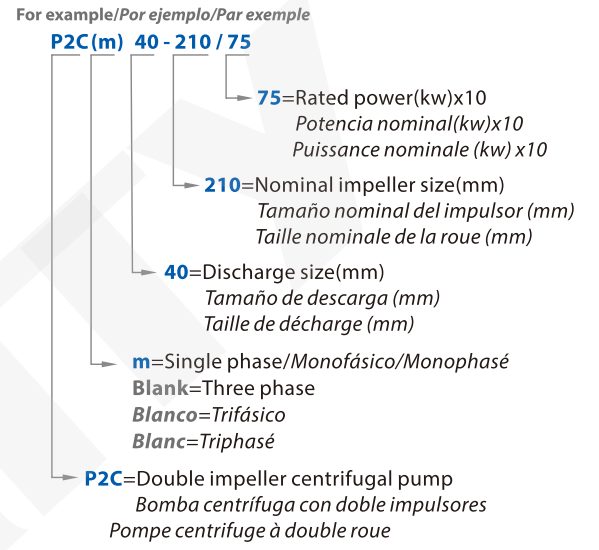

MODEL

Power

l/min

Q=DELIVERY

DN

0

40

50

60

70

80

90

100

110

120

140

160

180

200

250

300

350

400

450

kw

hp

m³/h

0

2.4

3

3.6

4.2

4.8

5.4

6

6.6

7.2

8.4

9.6

10.8

12

15

18

21

24

27

mm

25-140/11

1.1

1.5

Head

H(m)

54

47.5

44.5

41

37

33

28

22

32x25

25-140/15

1.5

2

67

60

57

54

50

45

40

32

32x25

25-160/11

1.1

1.5

47

44

42

40

38

35

33

30

27

24

32x25

25-160/15

1.5

2

58

54

53

51

49

47

45

43

40

37

30

32x25

25-160/22

2.2

3

68

64.5

63

62

60

58

56

54

51

48

41

32

32x25

32-200/30

3

4

70

63

62

60.5

59

57

55

52

49.5

46.5

36

40x32

32-200/40

4

5.5

85

77

76

75

74

72

69

66

62

58

49

40x32

32-210/55

5.5

7.5

94

91

90

89

87

85

83

79

75

70

56

50x32

32-210/75

7.5

10

112

110

109

108

107

105

102

99

94

89

74

50x32

40-210/55

5.5

7.5

94

91

90

89

87

85

83

79

75

70

56

50x40

40-210/75

7.5

10

112

110

109

108

107

105

102

99

94

89

74

50x40

50-180/40

4

5.5

62

59

58

57

56

55

55

50

48

44

36

31

23

50x50

50-180/55

5.5

7.5

72

69

68

67

66

65

65

60

58

54

46

41

33

50x50

50-180/75

7.5

10

84

81

80

79

78

76

75

72

72

66

58

53

45

50x50

40-200/92

9.2

12.5

97

91.5

91

90

88

85

80

74

68

61

50x40

40-200/110

11

15

105

100

99

98

97

93

88

83

76

69

50x40

50-200/92

9.2

12.5

97

91.5

91

90

88

85

80

74

68

61

50x50

50-200/110

11

15

105

100

99

98

97

93

88

83

76

69

50x50

40-250/130

13

17.5

120

114

113

112

110

107

103

98

91

82

50x40

40-250/150

15

20

130

124

123

122

120

117

113

108

102

92

50x40

40-250/185

18.5

25

145

139

138

137

136

131

126

121

114

107

50x40

40-250/220

22

30

160

155

153

152

151

146

141

135

130

122

50x40

50-250/130

13

17.5

120

114

113

112

110

107

103

98

91

82

50x50

50-250/150

15

20

130

124

123

122

120

117

113

108

102

92

50x50

50-250/185

18.5

25

145

139

138

137

136

131

126

121

114

107

50x50

50-250/220

22

30

160

155

153

152

151

146

141

135

130

122

50x50



Contact Us


Please send inquiry to mina@cnpurity.com for prompt reply !



MATERIAL DESCRIPTION


No.

Description

Material

No.

Description

Material

No.

Description

Material

1

Pump Case

Cast iron

9

Wound Stator/Rotor

Silicon Steel/Copper

17

Terminal Box

Aluminum

2

Impeller

Brass

10

Motor Case

Aluminum

18

Terminal Board

Plastic

3

Mechanical Seal

SiC/Carbon/SS304

11

Support Foot

Plastic

19

Impeller Key

Iron

4

O-ring

Rubber

12

Back Cover

Cast iron

20

Water Deflector

Rubber

5

Connection

Cast iron

13

Reinforced Seal

Rubber

21

Release Valve

Brass

6

Reinforced Seal

Rubber

14

Fan Cover

Aluminum

22

Diffuser

Cast iron

7

Shaft

SS304/45# Steel

15

Fan

Plastic

23

Impeller Nut

Galvanizated Steel

8

Bearing

Ball Bearing

16

Through Bolt

Steel

24

Connection Bolt

Steel


DIMENSIONS ADN WEIGHT
