PZ

NEW/NUEVO

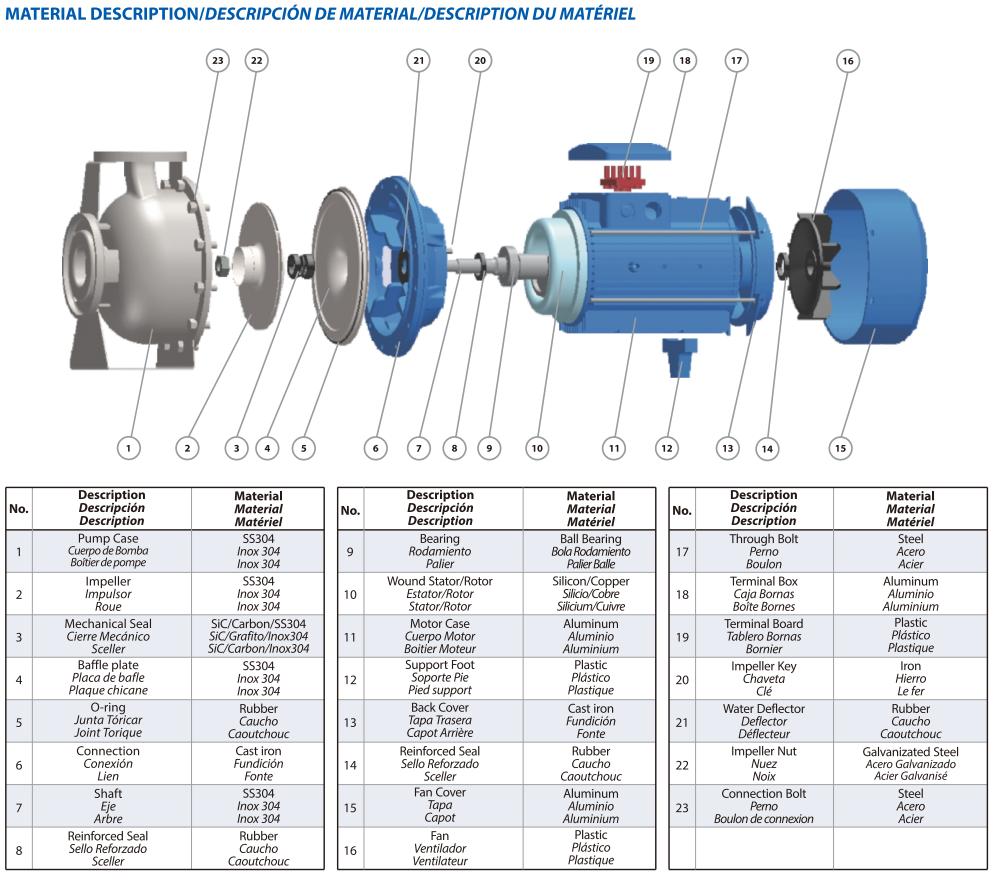

TECHNICAL DESCRIPTION
· New stainless steel standard pump
· Original design by PURITY
· Both square motor & round motor available
· YE3 high efficient motor, with protection IP55 class F
· Pump case in stainless steel AISI 304
· Impeller in stainless steel AISI 304
· Shaft in stainless steel AISI 304
· Quality NSK bearing, wear resistance mechanical seal

USING LIMITS
· Liquid temperature between -10℃ and +120℃
· Ambient temperature up to +50℃
· Max. working pressure 16 bar
· Continuous service S1

APPLICATIONS
· Used for: water supply, cleaning sets, pressure boosting, firefighting sets, irrigation, industrial applications, water circulation in climatisation sets, agricultural applications.
· Suitable for use with clean, aggressive liquids that are chemically compatible with the materials from which the pump is made.
· The pumps must be installed in enclosed places, or at least protected against inclement weather.

NEW/NUEVO

TECHNICAL DESCRIPTION
· New stainless steel standard pump
· Original design by PURITY
· Both square motor & round motor available
· YE3 high efficient motor, with protection IP55 class F
· Pump case in stainless steel AISI 304
· Impeller in stainless steel AISI 304
· Shaft in stainless steel AISI 304
· Quality NSK bearing, wear resistance mechanical seal

USING LIMITS
· Liquid temperature between -10℃ and +120℃
· Ambient temperature up to +50℃
· Max. working pressure 16 bar
· Continuous service S1

APPLICATIONS
· Used for: water supply, cleaning sets, pressure boosting, firefighting sets, irrigation, industrial applications, water circulation in climatisation sets, agricultural applications.
· Suitable for use with clean, aggressive liquids that are chemically compatible with the materials from which the pump is made.
· The pumps must be installed in enclosed places, or at least protected against inclement weather.
