PSCF series split case fire pump

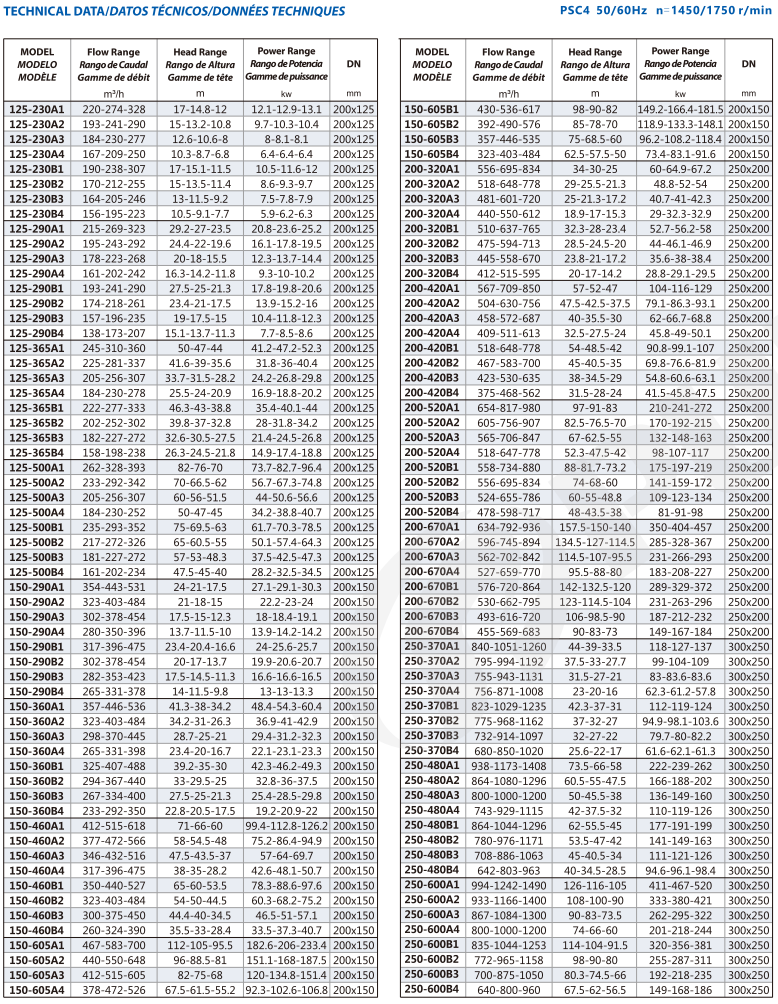

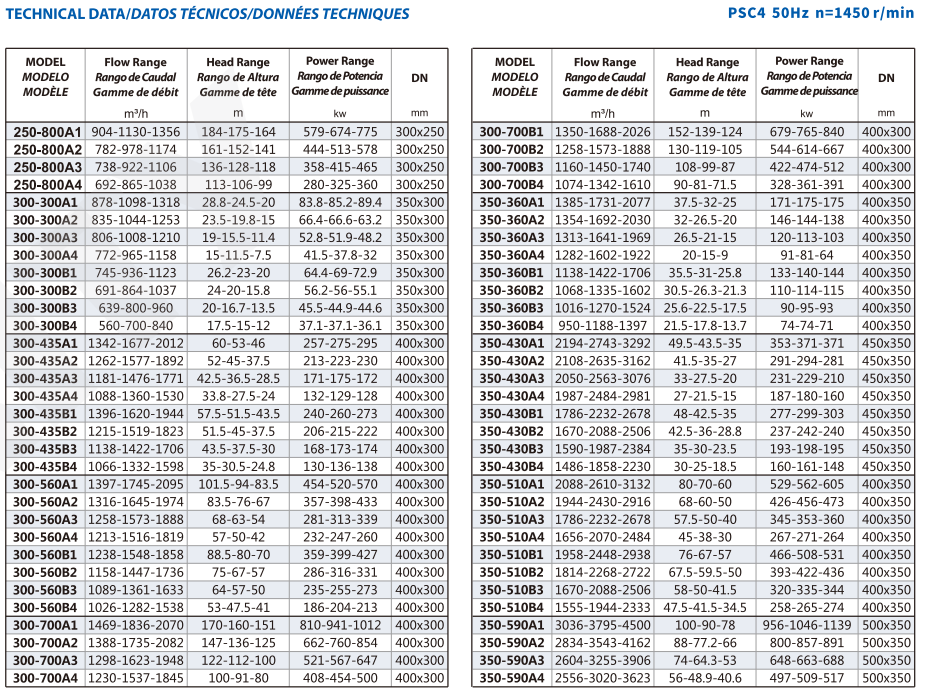

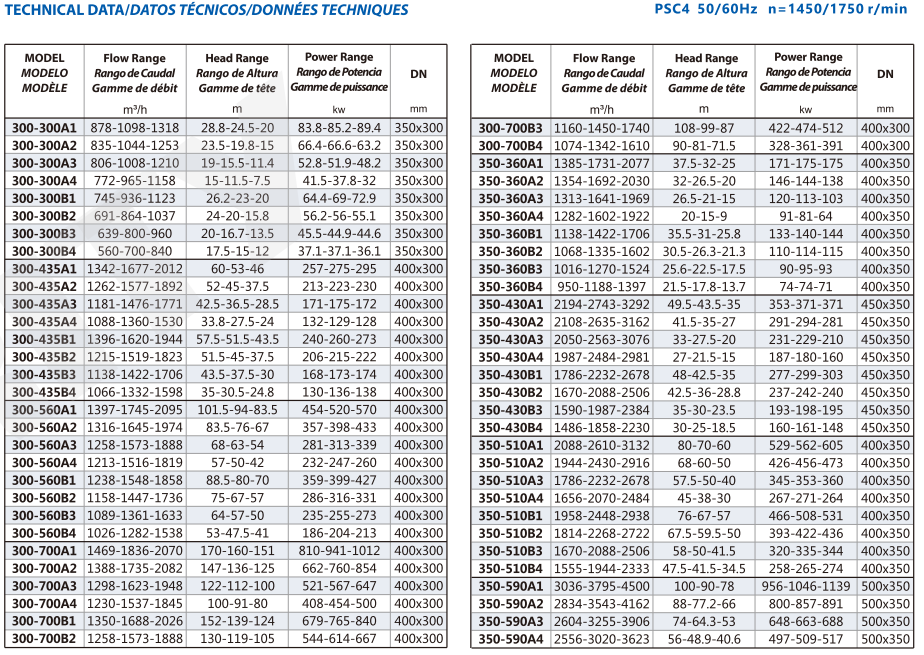

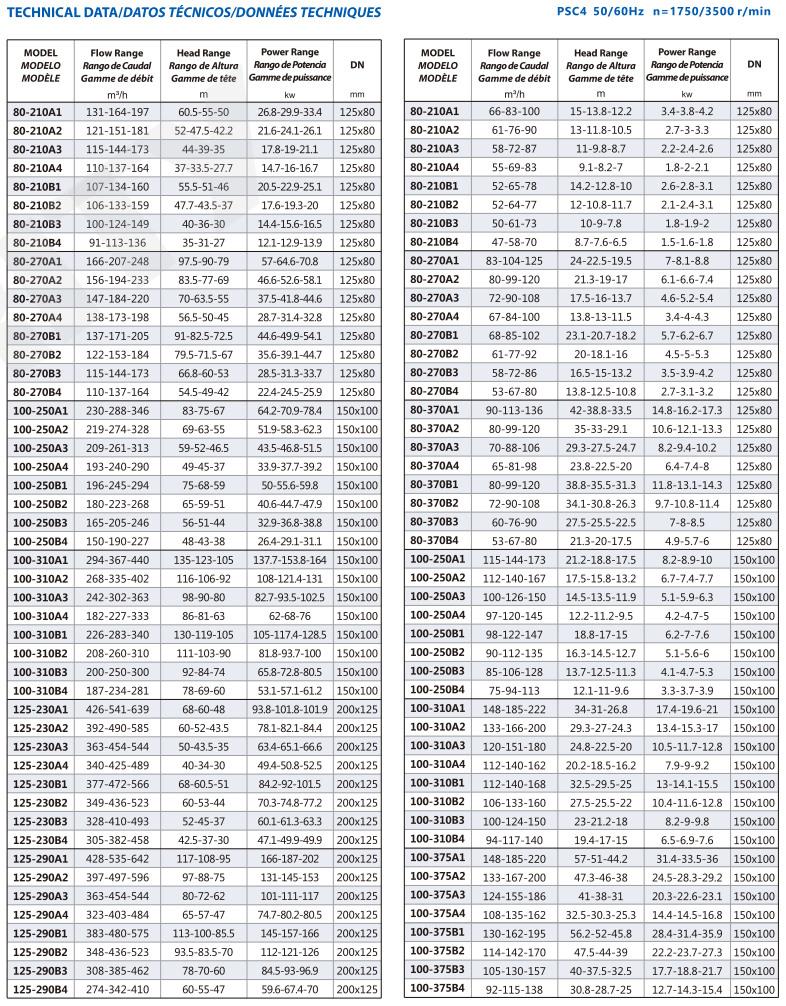

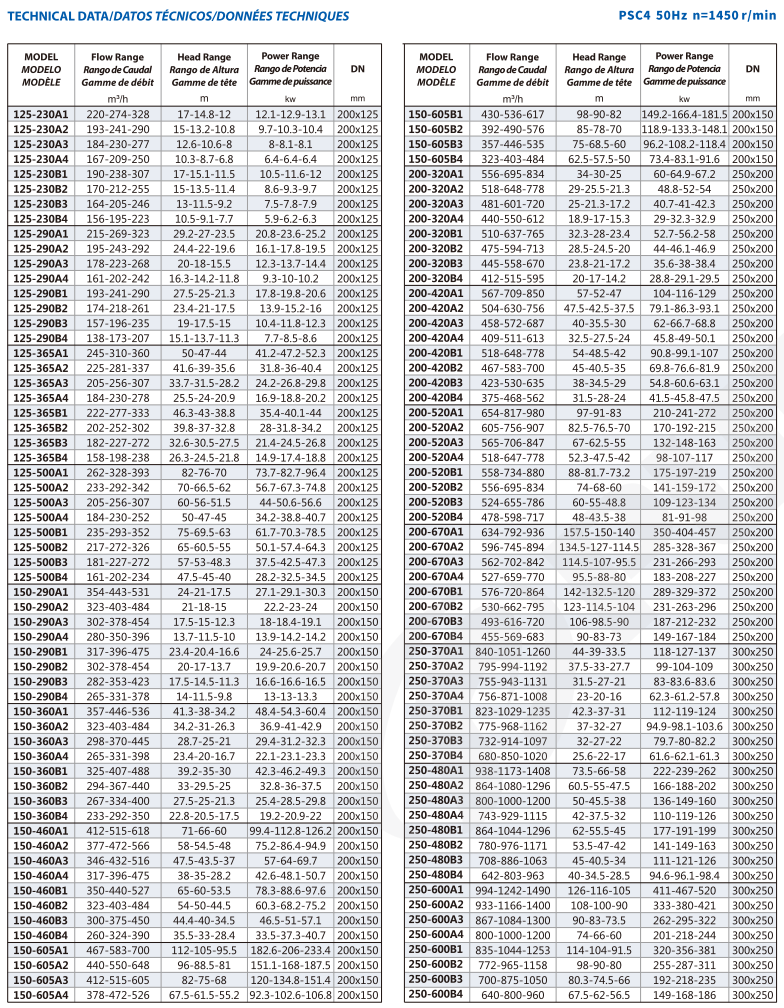

Performance Data:
Max. Flow: 4500m3/h
Max. Head: 225m
Power range: 0.75-250kw(1-340hp)
DN: 80-500MM
Advantage:Double suction Large capacity
TECHNICAL DESCRIPTION
New split case pump
Original design by PURITY (patented)
Available complete with electric motor or diesel engine
Easily back pull-out from driver
Pump case with anti-corrosive coating HT250
Impeller in stainless steel AISI 304 or HT250
Shaft in stainless steel AISI 304 or galvanized iron
Quality bearing,mechanical seal/gland packing
APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The split case pumps are recommended for use in water supply, cleaning
sets, pressure boosting, firefighting sets, irrigation, industrial applications,
water circulation in climatisation sets, agricultural.
USING LIMITS
Liquid temperature between -10℃ and +120℃ L
Ambient temperature up to +50℃ A
Max.working pressure 25 bar M
Continuous service S1
