 منزل .  حار بيع

WQV

[WQV] دوامة قطع مضخة مياه الصرف الصحي من مضخة النقاء للمياه القذرة

الوصف الفني
· تصميم جديد لمضخة مكافحة الحريق
· التصميم الأصلي من PURITY (حاصل على براءة اختراع)
· يتوفر كل من المحرك المربع والمحرك الدائري
· محرك YE3 عالي الكفاءة ، مع حماية IP55 فئة F.
· علبة المضخة بطلاء مضاد للتآكل
· المكره من الفولاذ المقاوم للصدأ AISI 304 أو النحاس
· عمود الدوران من الفولاذ المقاوم للصدأ AISI 304
· شفة مجلفنة مضادة مع براغي وصواميل وحشيات
· جودة تحمل NSK ، ختم الميكانيكية مقاومة التآكل
· نماذج للسعات من 80-5000 GPM أمريكي

3D PRODUCT CHAT NOW

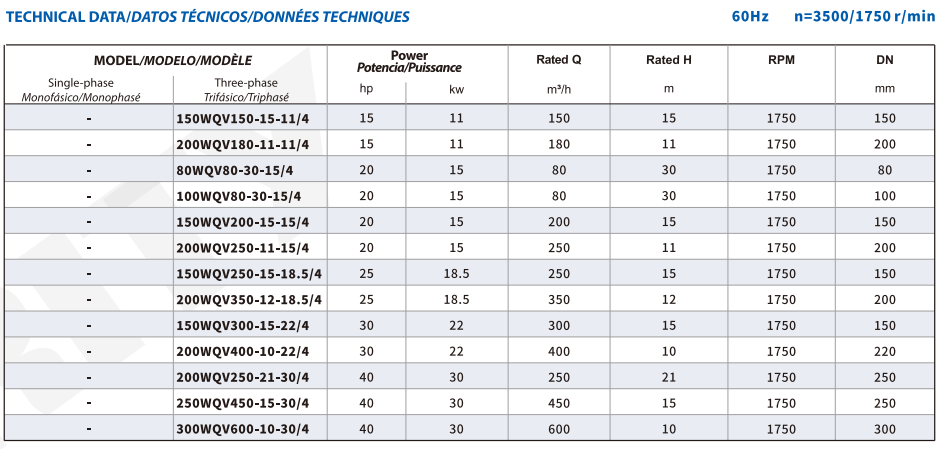

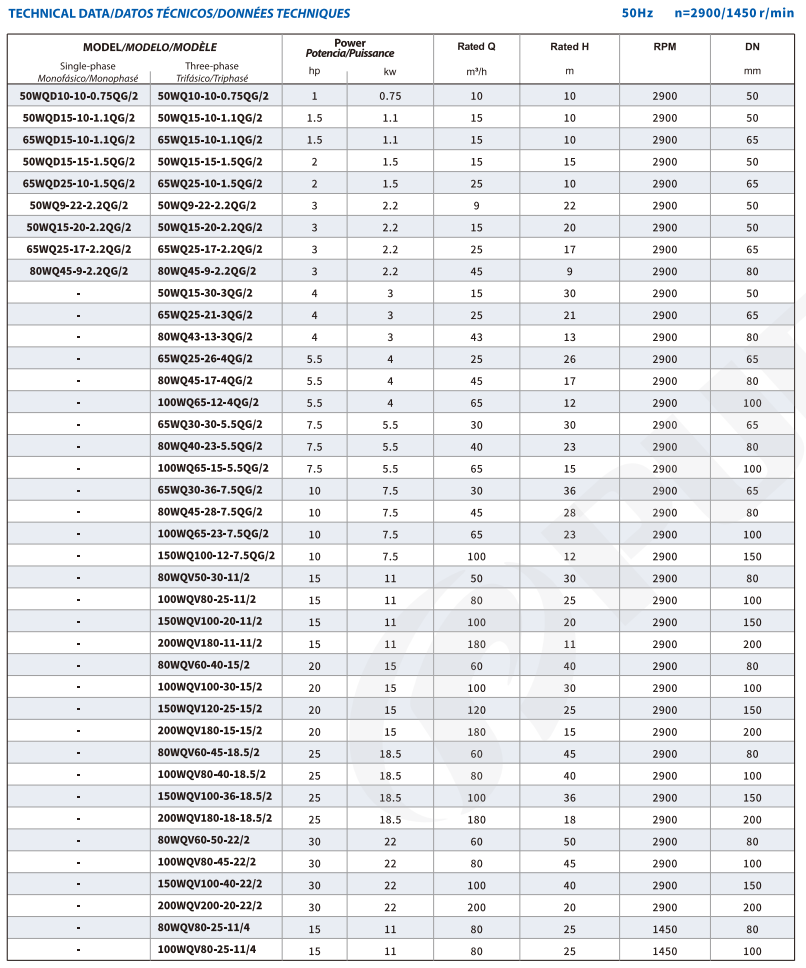

Product Specification (50HZ) 60HZ

TECHNICAL DESCRIPTION
New cutting submersible sewage pumps
Equipped with vortex alloy impeller with 48HR(hardness)
Better hydraulic characteristics
Pump case in heavy gauge robust cast iron HT250
Casing resistant to abrasion and long-lasting
YE3 high efficient motor, with protection IP68 class F
Shaft in stainless steel AISI 304 or galvanized iron
Discharge port with bolts,nuts and gastkets
Quality NSK bearing, wear resistance mechanical seal

APPLICATIONS
The WQV series pumps, manufactured from heavy gauge robust cast iron,resistant to

abrasion and long-lasting, are equipped with a VORTEX impeller and are therefore

suitable for draining dirty, filthy and refluent water,and water mixed with putrid mud.

They are suitable for installation in sewers,tunnels,canal,excavations,underground car parks,etc.

USING LIMITS
Temperature of the liquid to +40 °C
10 m maximum immersion depth
(with a sufficiently long power cable)
Solids passage:
from 25mm to 65mm

Purity Pump Co., Ltd. is a specialized manufacturer and supplier of high-quality

industrial pumps, exporting to global market in competitive prices. We provide

variousreliable pumps for projects.Our main products are centrifugal pumps, fire

pumps and system, industrial pumps and agricultural pumps.

Our products and services have been deployed in more than 55 countries.

And we supply water pumps for many large projects like National Olympic Stadium.

We also supply centrifugal and fire pumps to some well-known pump companies all

over the world.
