PST

[PST] PST PURITY EN733 مضخات الطرد المركزي القياسية مضخة كهربائية

الوصف الفني
· مضخة طرد مركزي جديدة EN733
· التصميم الأصلي من PURITY (حاصل على براءة اختراع)
· يتوفر كل من المحرك المربع والمحرك الدائري
· محرك YE3 عالي الكفاءة ، مع حماية IP55 فئة F.
· علبة المضخة بطلاء مضاد للتآكل
· المكره من الفولاذ المقاوم للصدأ AISI 304 أو الحديد الزهر
· عمود الدوران من الفولاذ المقاوم للصدأ AISI 304 أو الحديد المجلفن
· شفة مجلفنة مضادة مع براغي وصواميل وحشيات
· جودة تحمل NSK ، ختم الميكانيكية مقاومة التآكل
3D PRODUCT CHAT NOW

Related Products



Product Description




TECHNICAL DESCRIPTION

New EN733 standard centrifugal pump
Original design by PURITY (patented)
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Galvanized counter flange with bolts, nuts and gaskets
Quality NSK bearing, wear resistance mechanical seal


APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The EN733 centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.

USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1

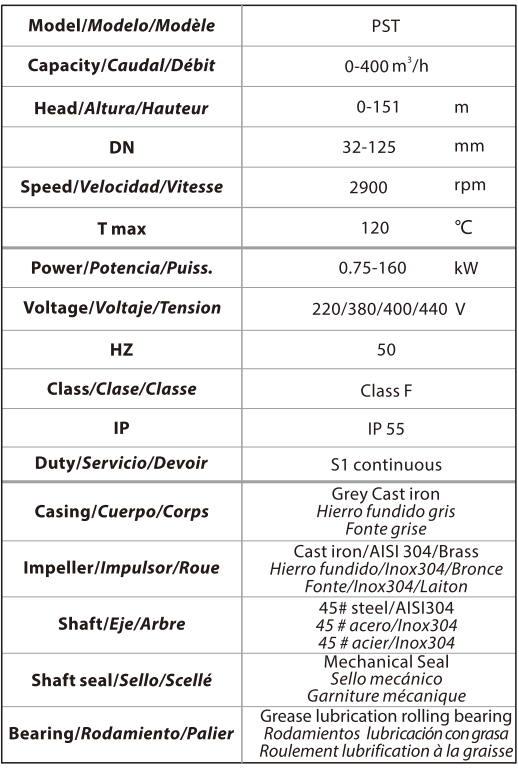

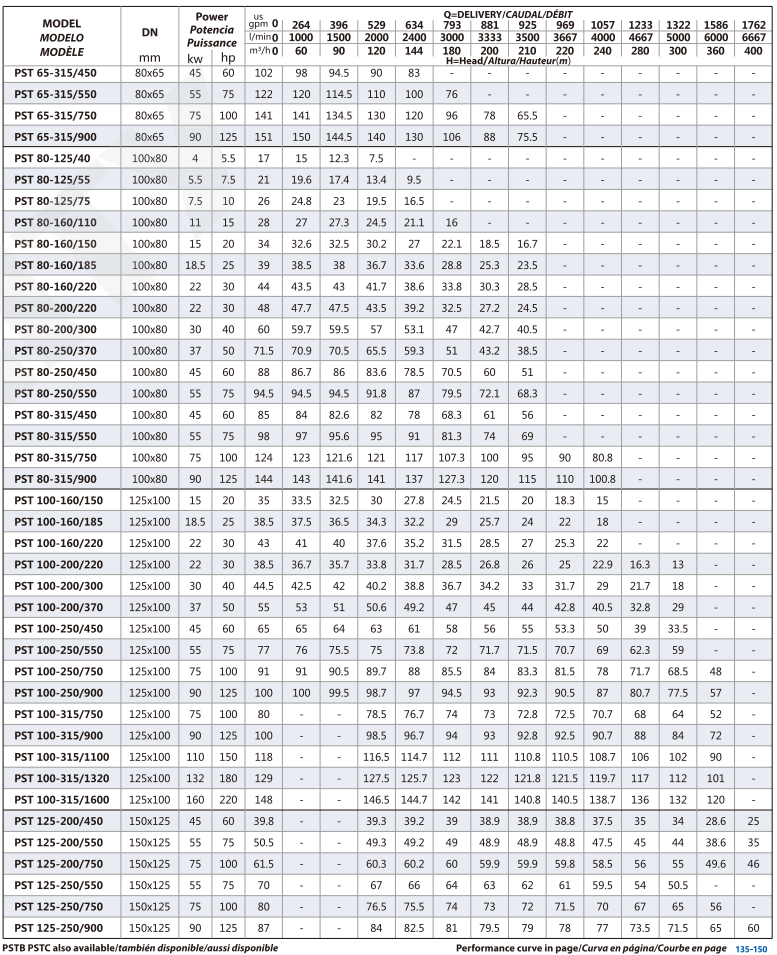

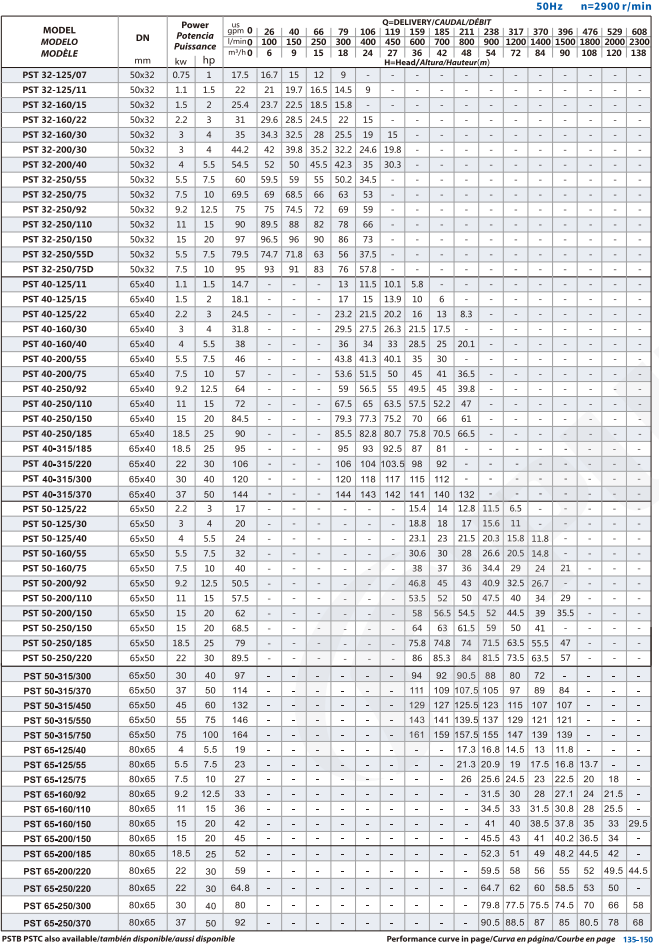

TECHNICAL DATA / DATOS TéCNICOS                                                         50Hz   n=2900  1/min

Other Sizes  Can Provide On Request.


Contact Us


Please send inquiry to mina@cnpurity.com for prompt reply !


Material Description

Production Line



Packaging & Shipping



Our Exhibition



Certifications



Related Products



Product Description





TECHNICAL DESCRIPTION

New EN733 standard centrifugal pump
Original design by PURITY (patented)
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Galvanized counter flange with bolts, nuts and gaskets
Quality NSK bearing, wear resistance mechanical seal


APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The EN733 centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.

USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1

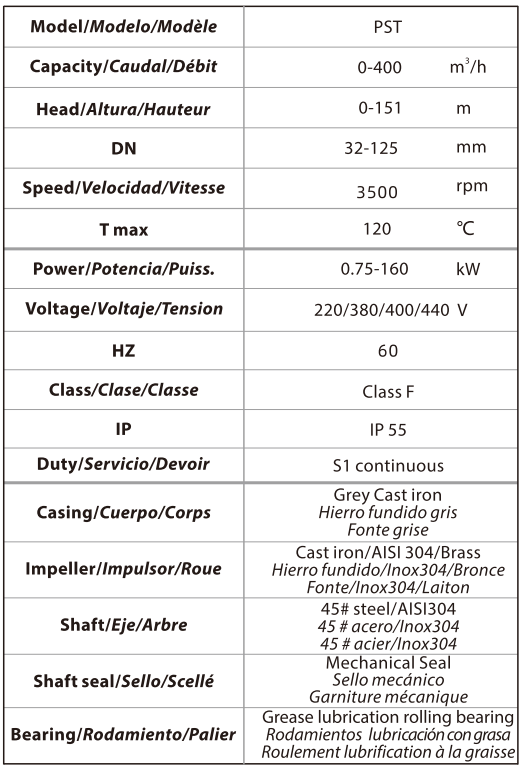

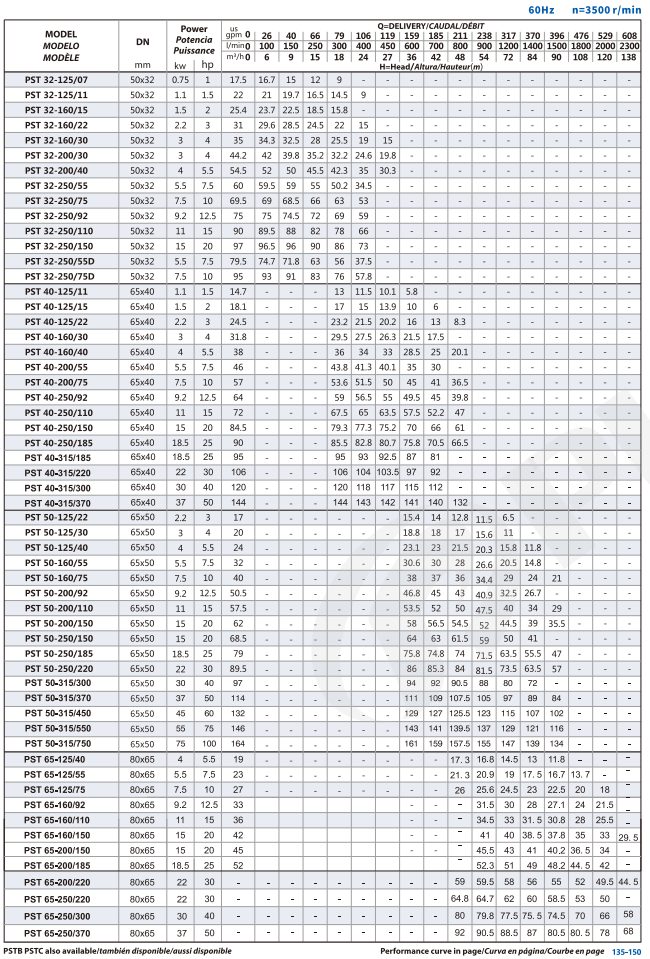

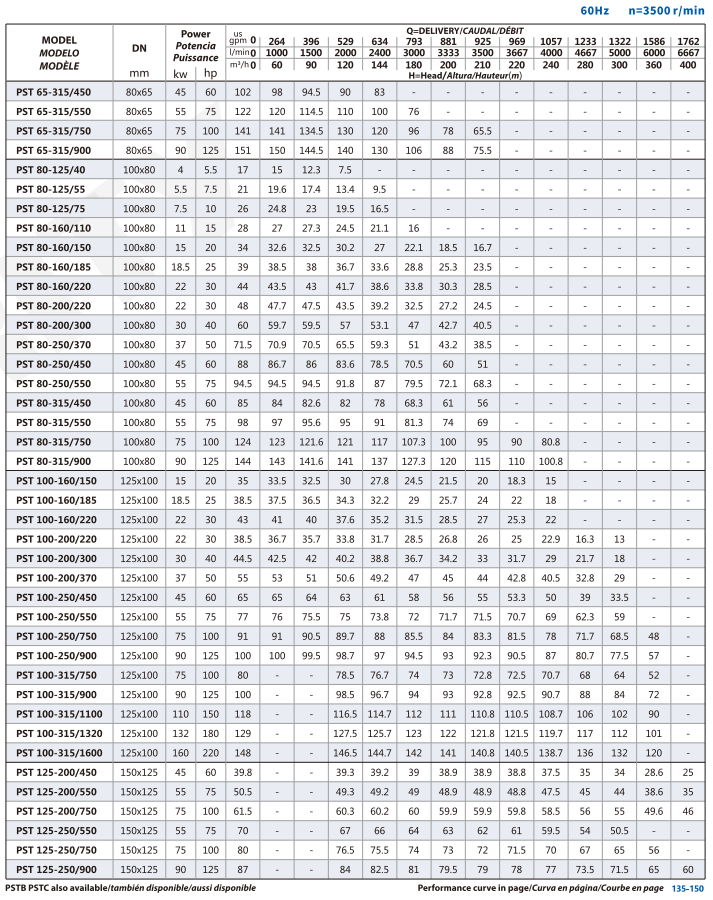

TECHNICAL DATA / DATOS TéCNICOS                                                         60Hz   n=3500  1/min

Other Sizes  Can Provide On Request.
