PBWS

[PBWS] نظام إمداد مياه المبنى عالي الضغط غير السلبي من PURITY

CDL / CDLF هو نوع من المنتجات متعددة الوظائف.يمكن استخدامه لنقل الوسائط المختلفة من مياه الحنفية إلى السائل الصناعي

عند درجات حرارة مختلفة وبمعدل تدفق وضغط مختلفين. نوع CDL قابل للتطبيق على نقل سائل غير قابل للتآكل ،

بينما CDLF مناسب للسائل المتآكل قليلاً.


سائل رقيق ونظيف وغير قابل للاشتعال وغير قابل للانفجار ولا يحتوي على حبيبات وألياف صلبة.
● درجة حرارة السائل:
نوع درجة الحرارة العادية: -l5C ~ + 70'C ،
نوع الماء الساخن: -15 درجة مئوية ~ + 120 درجة مئوية
● درجة الحرارة المحيطة: تصل إلى +40 درجة مئوية.
● الارتفاع: يصل إلى 1000 متر
3D PRODUCT CHAT NOW

Product Description


Stainless Centrifugal Water Pump Non-negative Pressure Water Supply Pump System

Pump information



TECHNICAL DESCRIPTION

CDL/ CDLF is a kind of vertical non-self priming multistage centrifugal pump,

which is driven by a standard electric motor. Thc motor output shaft directly connects

with the pump shaft through a coupling. The pressure-resistant cylinder

and flow passage components arefixed between pump head

and inlet & outlet section with stay bolts. The inlet and outlet are

located at the pump bottom at the same plane.

This kind of pump can be equipped with an intelligent protector to effectively

prevent it from dry-running, out-of-phase and overload.
APPLICATION

It can be used to convey various medium from tap watert to industrial liquid

at different temperature and with different flow rate and pressure.

CDL type is applicable to conveying non-corrosive liquid,

while CDLF is suitable for slightly corrosive liquid.

● Water supply: Water filter and transport in Waterworks, boosting of

main pipeline, boosting in high-rise buildings.

● Industrial boosting: Process flow water system, cleaning system,

high-pressure washing system, fire fighting system .

● Industrial liquid conveying: Cooling and air-conditioning system,

boiler water supply and condensing system,machine-associated

purpose, acids and alkali.


● Water treatment: Ultrafiltration system, reverse osmosis system, distillation system, separator,

swimming pool. Irrigation: Farmland irrigation, spray irrigation, dripping irrigation.

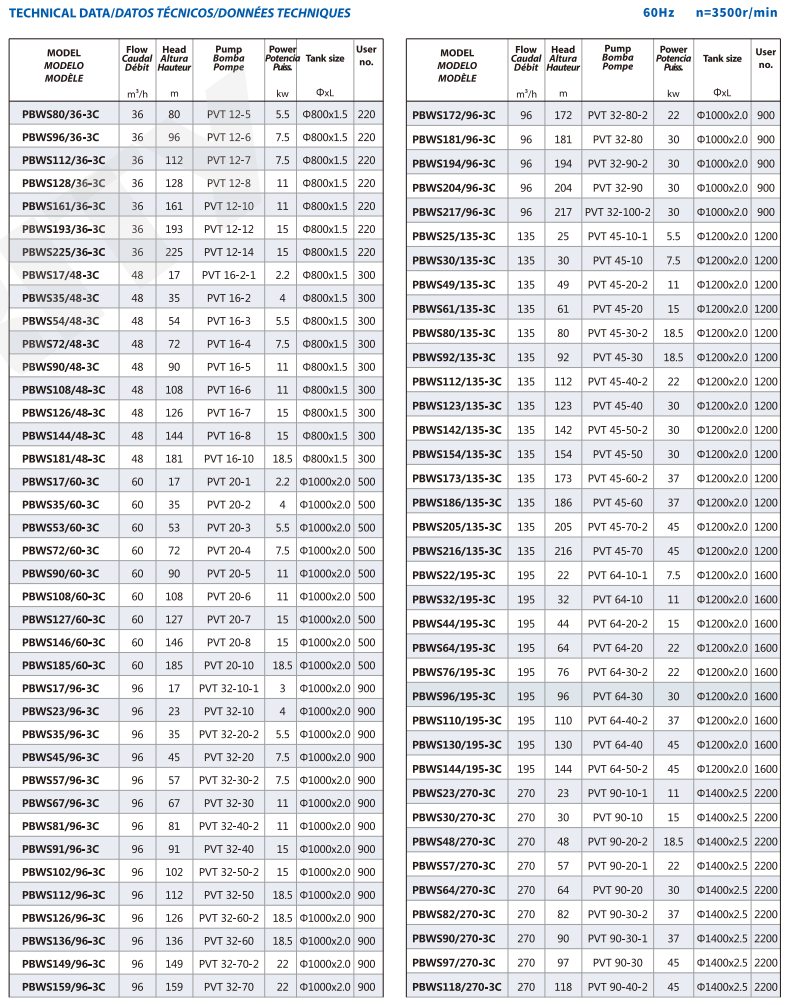

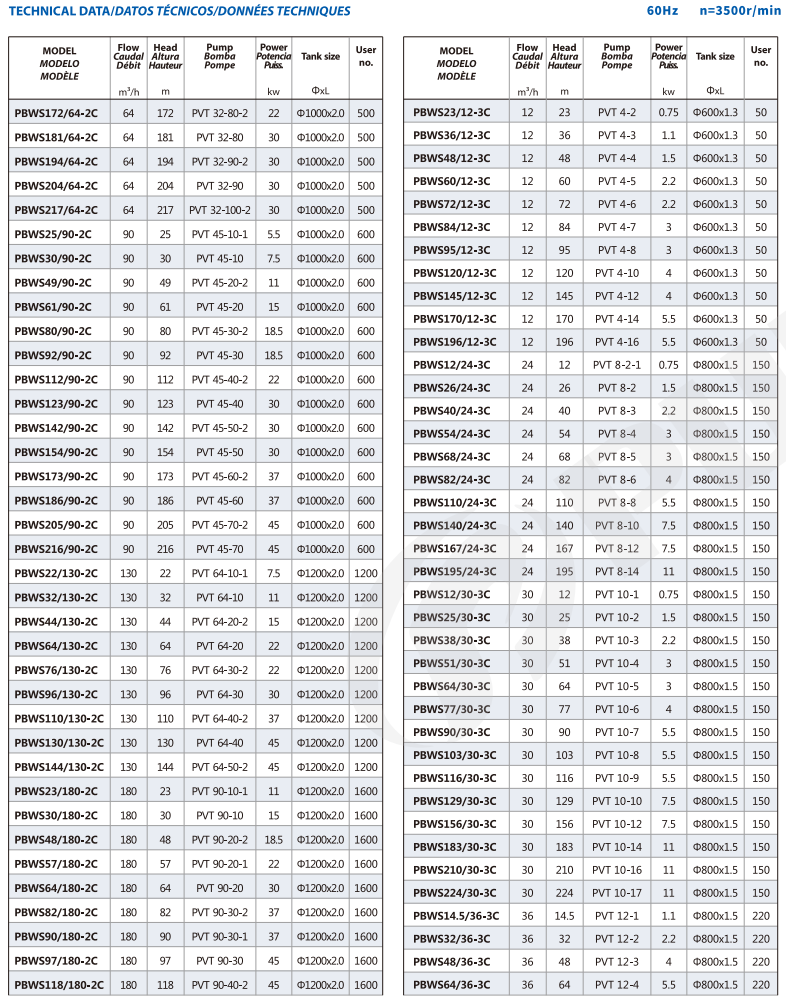

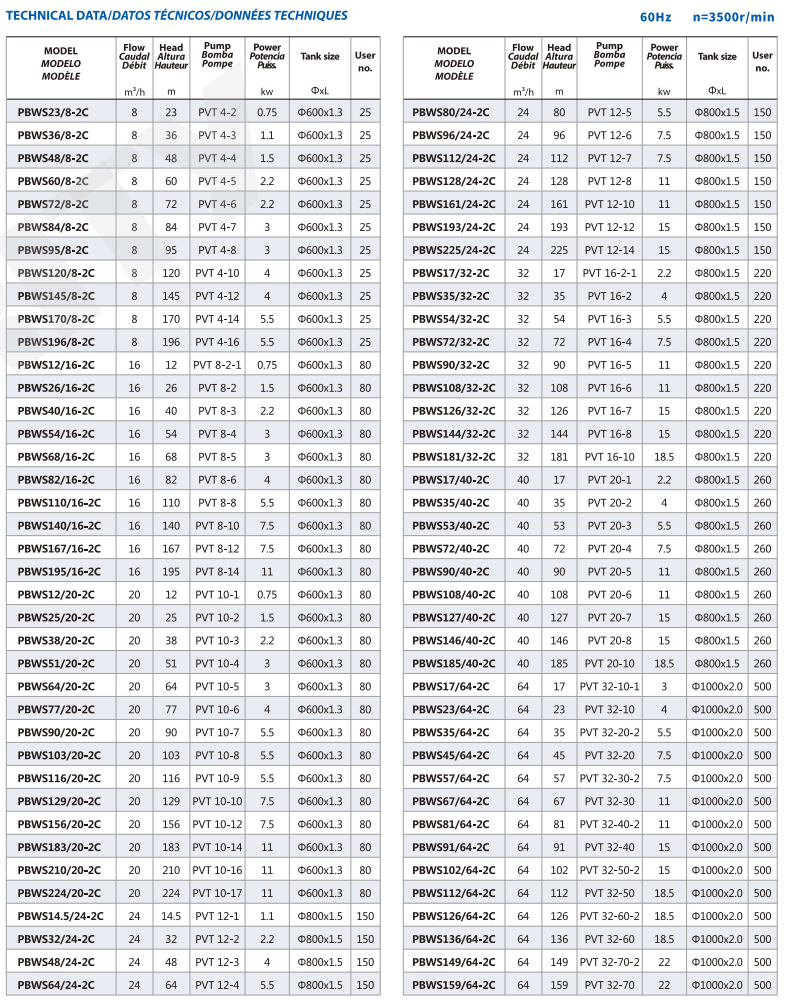

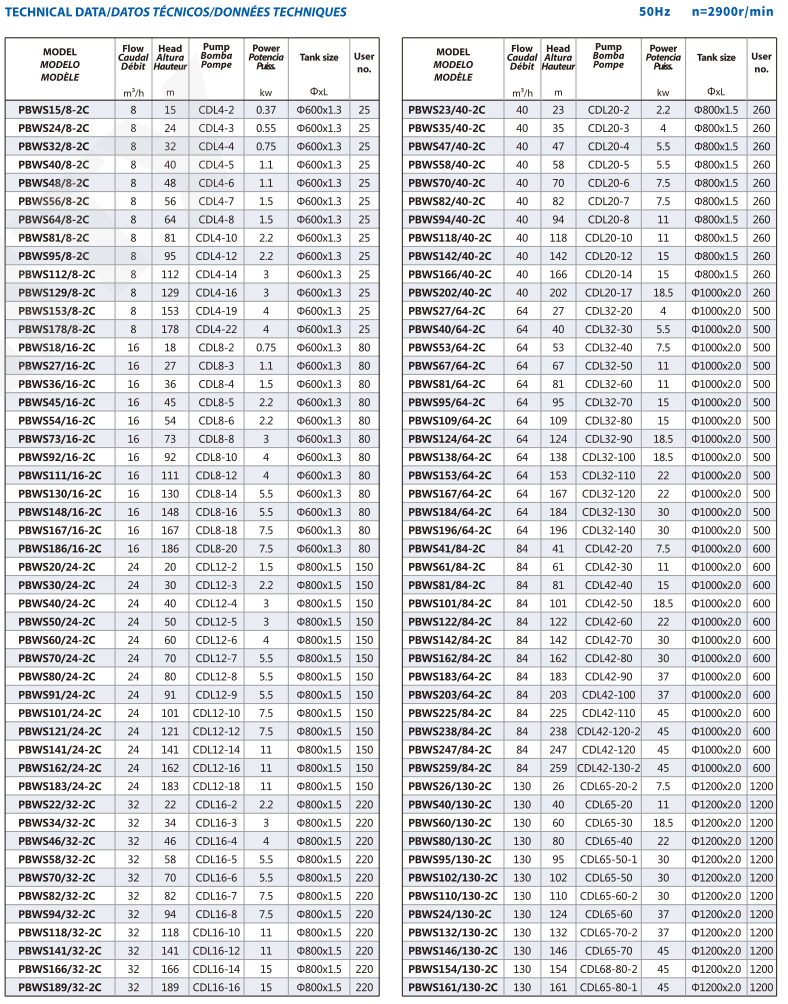

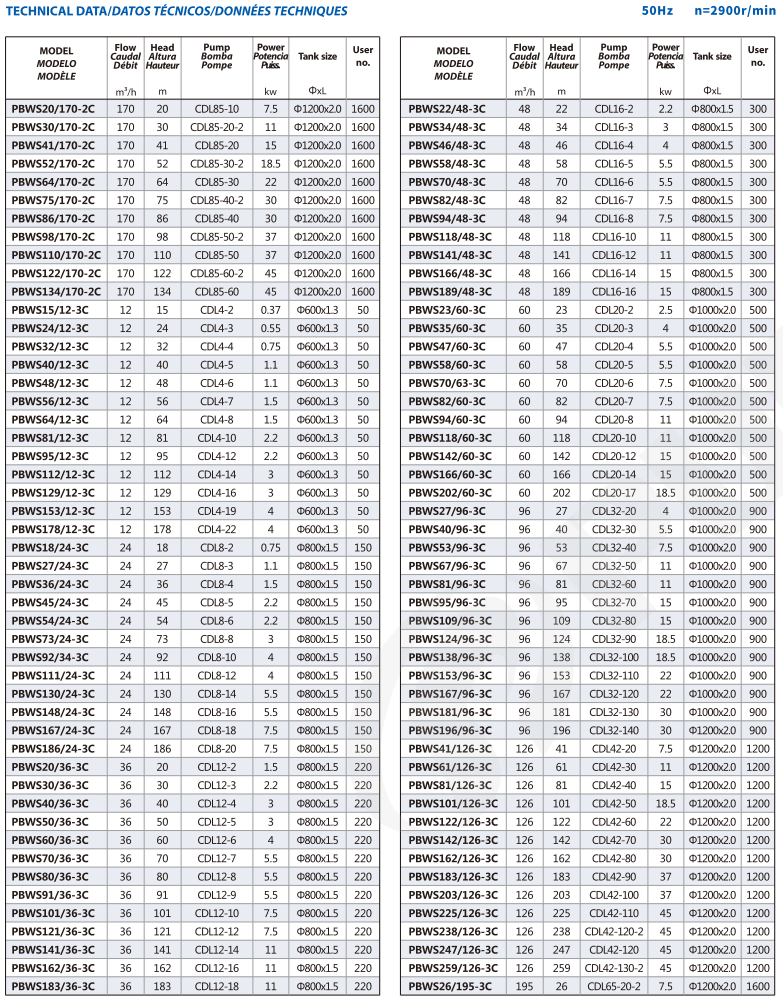

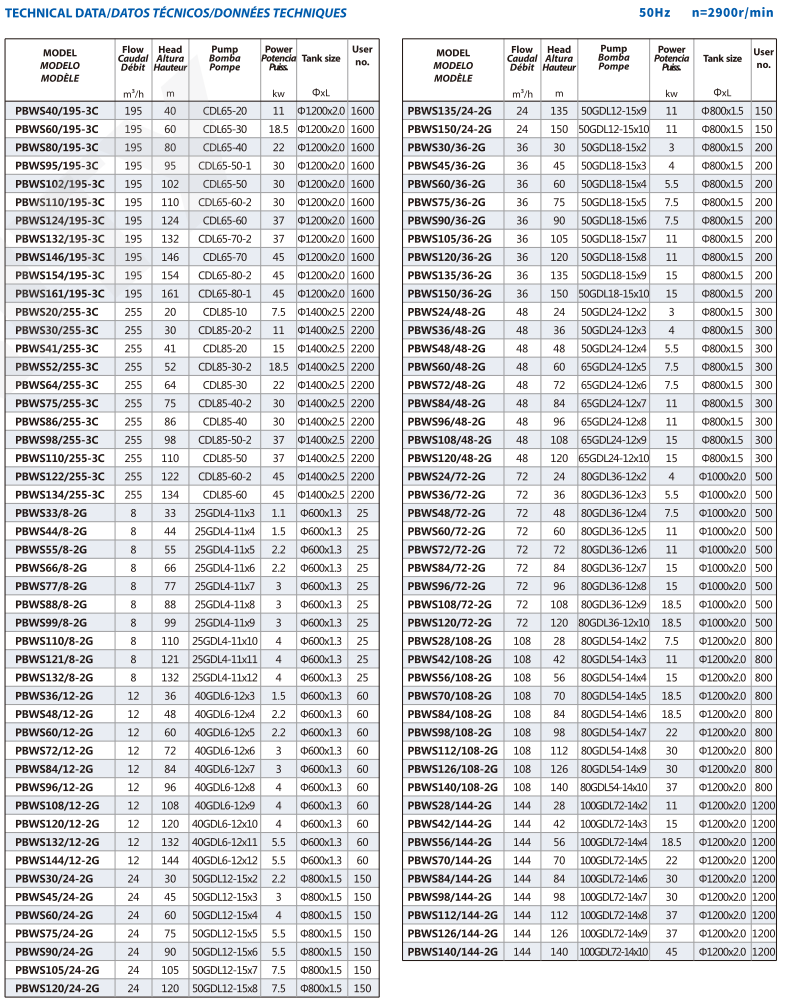

TECHNICAL DATA




Contact Us


Please send inquiry to mina@purityfire.com for prompt reply !



Purity Pump Co., Ltd. is a specialized manufacturer and supplier of high-quality

industrial pumps, exporting to global market in competitive prices. We provide

variousreliable pumps for projects.Our main products are centrifugal pumps, fire

pumps and system, industrial pumps and agricultural pumps.


Our products and services have been deployed in more than 55 countries.

And we supply water pumps for many large projects like National Olympic Stadium.

We also supply centrifugal and fire pumps to some well-known pump companies all

over the world.
