Product Description
WQV Vortex Cutting Submersible Pump
TECHNICAL DESCRIPTION
New cutting submersible sewage pumps
Equipped with vortex alloy impeller with 48HR(hardness)
Better hydraulic characteristics
Pump case in heavy gauge robust cast iron HT250
Casing resistant to abrasion and long-lasting
YE3 high efficient motor, with protection IP68 class F
Shaft in stainless steel AISI 304 or galvanized iron
Discharge port with bolts,nuts and gastkets
Quality NSK bearing, wear resistance mechanical seal
APPLICATIONS
The WQV series pumps, manufactured from heavy gauge robust cast iron,resistant to
abrasion and long-lasting, are equipped with a VORTEX impeller and are therefore
suitable for draining dirty, filthy and refluent water,and water mixed with putrid mud.
They are suitable for installation in sewers,tunnels,canal,excavations,underground car parks,etc.
USING LIMITS
Temperature of the liquid to +40 °C
10 m maximum immersion depth
(with a sufficiently long power cable)
Solids passage:
from 25mm to 65mm

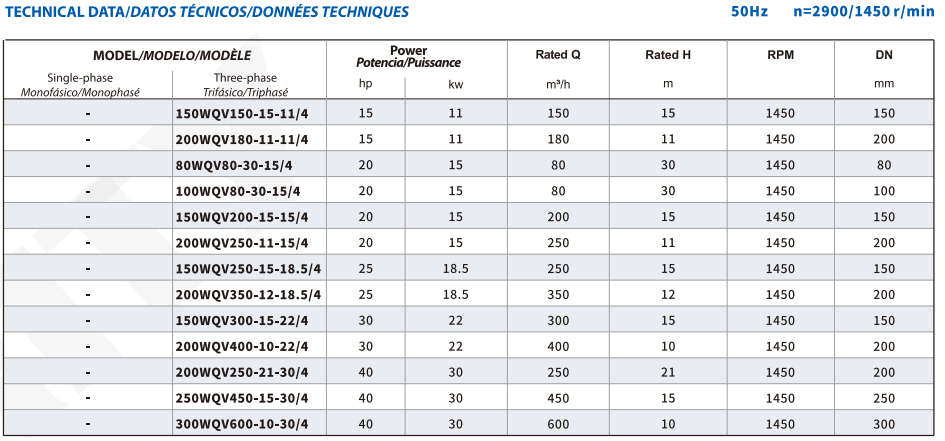

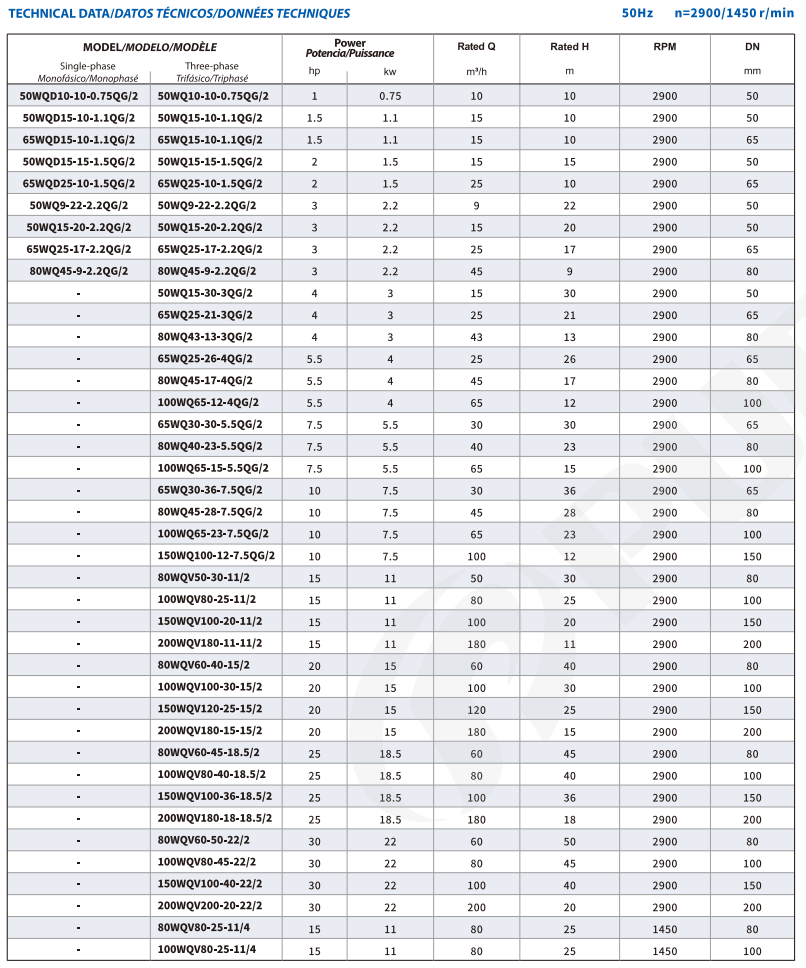

TECHNICAL DATA 50Hz n=2900/1450 1/min
|
No. |
Description |
Material |
No. |
Description |
Material |
|
1 |
Motor cover |
Cast iron |
9 |
Base |
Cast iron |
|
2 |
Plate |
Cast iron |
10 |
Cutter plate |
Alloy 48HR |
|
3 |
Motor Case |
Cast iron |
11 |
Pump Case |
Cast iron |
|
4 |
Wound Stator/Rotor |
Silicon Steel/Copper |
12 |
Impeller Nut |
Galvanizated Steel |
|
5 |
Bearing |
Ball Bearing |
13 |
Impeller |
Alloy 48HR |
|
6 |
Shaft |
SS304/45# Steel |
14 |
Mechanical Seal |
SiC/Carbon/SS304 |
|
7 |
Chamber |
Cast iron |
15 |
Seal plate |
Cast iron |
|
8 |
Output flange |
Cast iron |
Contact Us
Please send inquiry to mina@cnpurity.com for prompt reply !
Production Line
Packaging & Shipping
Our Exhibition
Certifications
Related Products
Product Description
WQV Vortex Cutting Submersible Pump
TECHNICAL DESCRIPTION
New cutting submersible sewage pumps
Equipped with vortex alloy impeller with 48HR(hardness)
Better hydraulic characteristics
Pump case in heavy gauge robust cast iron HT250
Casing resistant to abrasion and long-lasting
YE3 high efficient motor, with protection IP68 class F
Shaft in stainless steel AISI 304 or galvanized iron
Discharge port with bolts,nuts and gastkets
Quality NSK bearing, wear resistance mechanical seal
APPLICATIONS
The WQV series pumps, manufactured from heavy gauge robust cast iron,resistant to
abrasion and long-lasting, are equipped with a VORTEX impeller and are therefore
suitable for draining dirty, filthy and refluent water,and water mixed with putrid mud.
They are suitable for installation in sewers,tunnels,canal,excavations,underground car parks,etc.
USING LIMITS
Temperature of the liquid to +40 °C
10 m maximum immersion depth
(with a sufficiently long power cable)
Solids passage:
from 25mm to 65mm

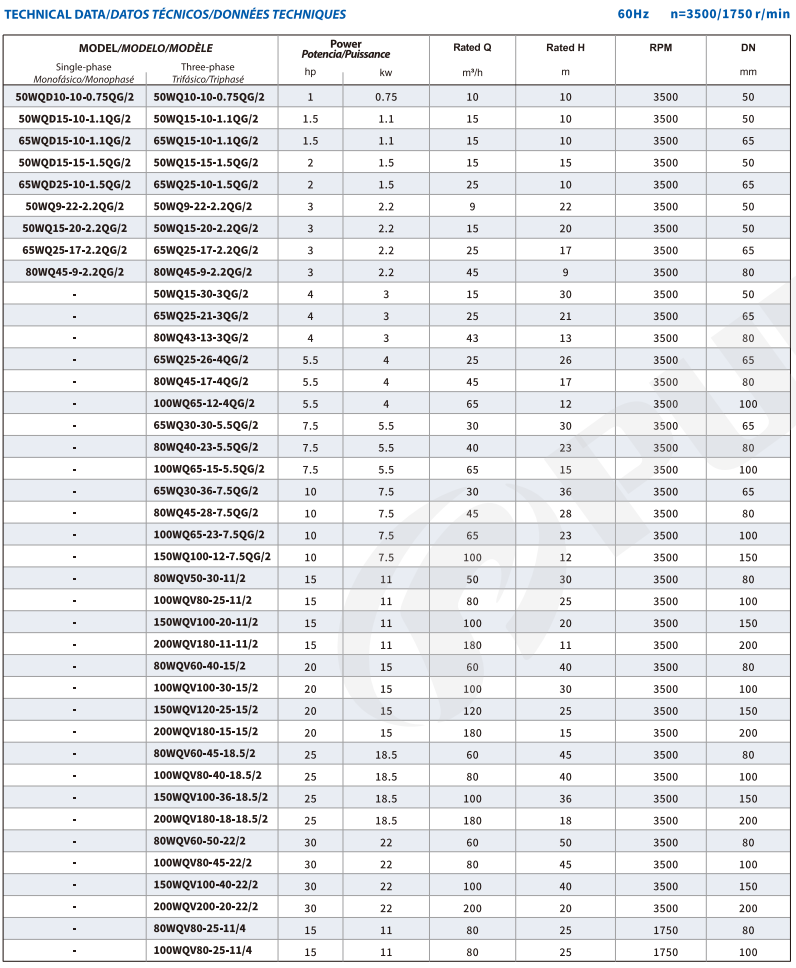

TECHNICAL DATA 60Hz n=3500/1750 1/min
|
No. |
Description |
Material |
No. |
Description |
Material |
|
1 |
Motor cover |
Cast iron |
9 |
Base |
Cast iron |
|
2 |
Plate |
Cast iron |
10 |
Cutter plate |
Alloy 48HR |
|
3 |
Motor Case |
Cast iron |
11 |
Pump Case |
Cast iron |
|
4 |
Wound Stator/Rotor |
Silicon Steel/Copper |
12 |
Impeller Nut |
Galvanizated Steel |
|
5 |
Bearing |
Ball Bearing |
13 |
Impeller |
Alloy 48HR |
|
6 |
Shaft |
SS304/45# Steel |
14 |
Mechanical Seal |
SiC/Carbon/SS304 |
|
7 |
Chamber |
Cast iron |
15 |
Seal plate |
Cast iron |
|
8 |
Output flange |
Cast iron |
