Product Description
PT Vertical Inline Pump
TECHNICAL DESCRIPTION
New vertical inline pump
Original design by PURITY (patented)
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Galvanized counter flange with bolts, nuts and gaskets
Quality NSK bearing, wear resistance mechanical seal
APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The vertical inline pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.
USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1
PATENTS
Registered model PT
Registered Patent Design n°201530478501.6

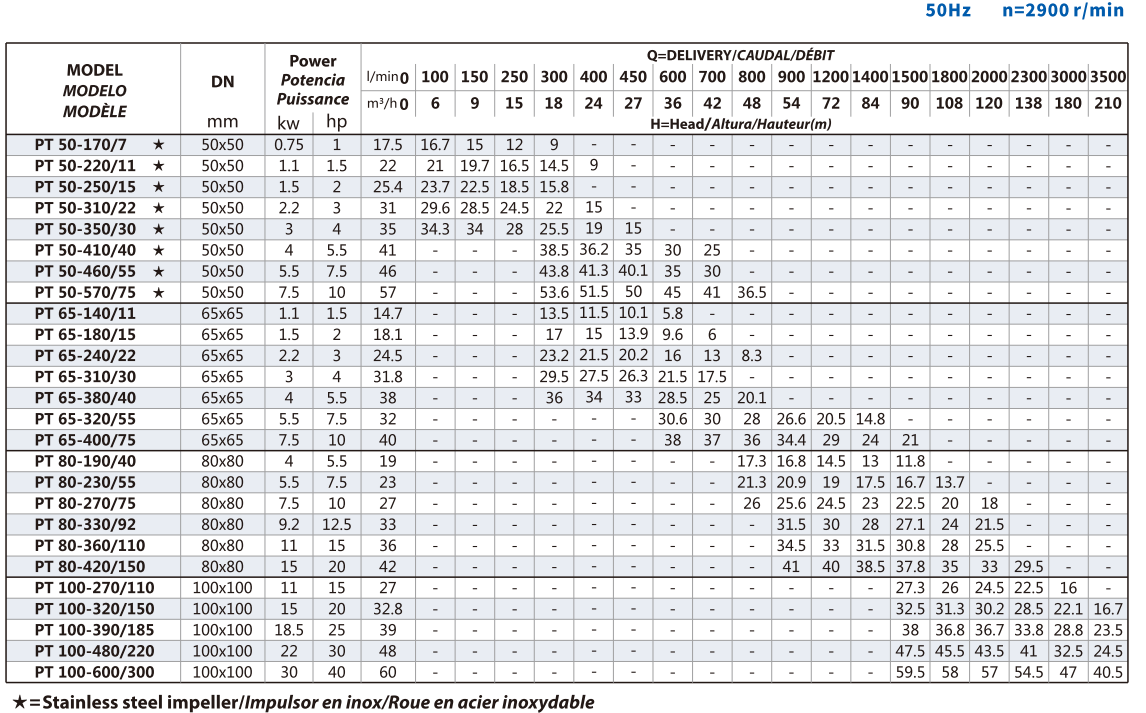

TECHNICAL DATA 50Hz n=2900 1/min
|
No. |
Description |
Material |
No. |
Description |
Material |
No. |
Description |
Material |
|
1 |
Pump Case |
Cast iron |
9 |
Wound Stator/Rotor |
Silicon Steel/Copper |
17 |
Terminal Board |
Plastic |
|
2 |
Impeller |
SS304/Cast iron |
10 |
Motor Case |
Aluminum |
18 |
Impeller Key |
Iron |
|
3 |
Mechanical Seal |
SiC/Carbon/SS304 |
11 |
Back Cover |
Cast iron |
19 |
Water Deflector |
Rubber |
|
4 |
O-ring |
Rubber |
12 |
Reinforced Seal |
Rubber |
20 |
Connection Bolt |
Steel |
|
5 |
Connection |
Cast iron |
13 |
Fan Cover |
Aluminum |
21 |
Impeller Nut |
Galvanizated Steel |
|
6 |
Shaft |
SS304/Cast iron |
14 |
Fan |
Plastic |
22 |
Release Valve |
Brass |
|
7 |
Reinforced Seal |
Rubber |
15 |
Through Bolt |
Steel |
|||
|
8 |
Bearing |
Ball Bearing |
16 |
Terminal Box |
Aluminum |
