[PSCM] SH سلسلة أفقية كبيرة الحجم المنقسمة حالة مضخة

الوصف الفني
· مضخة حالة انقسام جديدة
· التصميم الأصلي من PURITY (حاصل على براءة اختراع)
· متوفر بالكامل مع محرك كهربائي أو محرك ديزل
· سهولة الانسحاب من السائق
· حالة المضخة مع طلاء مضاد للتآكل HT250
· دفاعة من الفولاذ المقاوم للصدأ AISI 304 أو HT250
· عمود الدوران من الفولاذ المقاوم للصدأ AISI 304 أو الحديد المجلفن
· تحمل الجودة ، الختم الميكانيكي / تعبئة السد
3D PRODUCT CHAT NOW

Product Description



TECHNICAL DESCRIPTION

New split case pump
Original design by PURITY (patented)
Available complete with electric motor or diesel engine
Easily back pull-out from driver
Pump case with anti-corrosive coating HT250
Impeller in stainless steel AISI 304 or HT250
Shaft in stainless steel AISI 304 or galvanized iron
Quality bearing,mechanical seal/gland packing


APPLICATIONS
Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The split case pumps are recommended for use in water supply,

cleaning sets, pressure boosting, firefighting sets, irrigation, industrial

applications, water circulation in climatisation sets, agricultural.


USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 25 bar
Continuous service S1

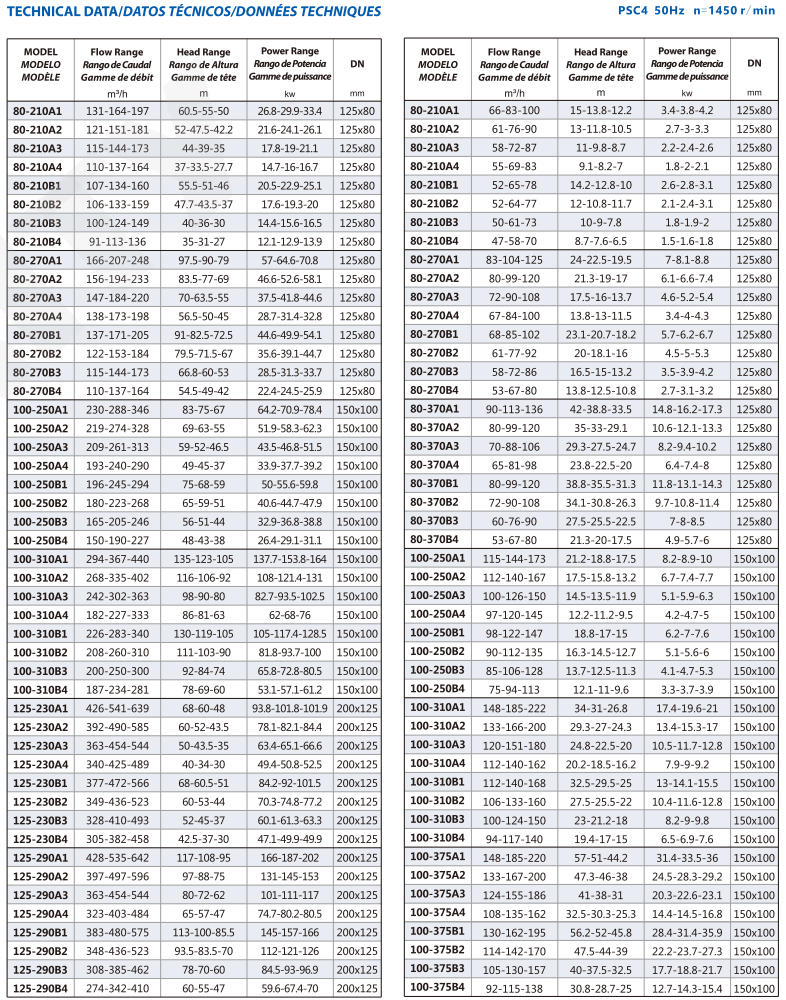

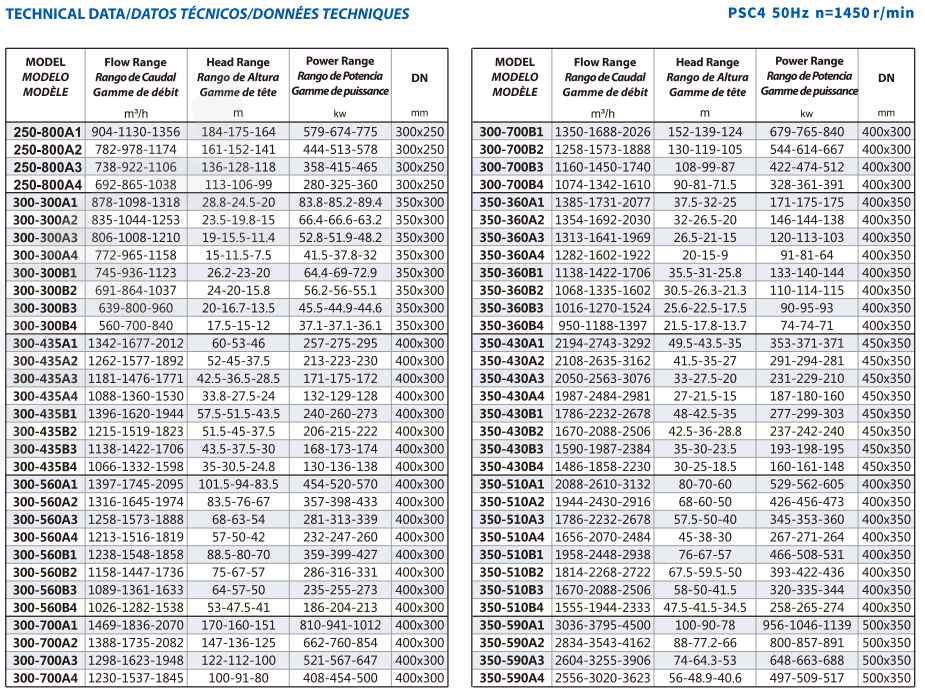

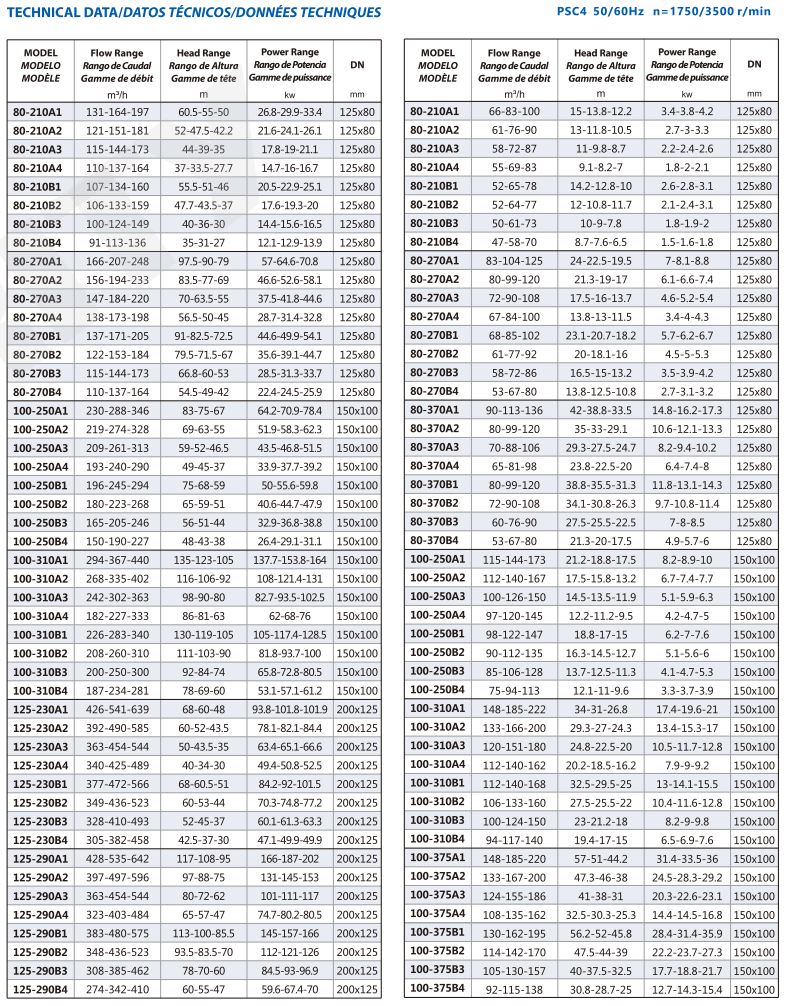

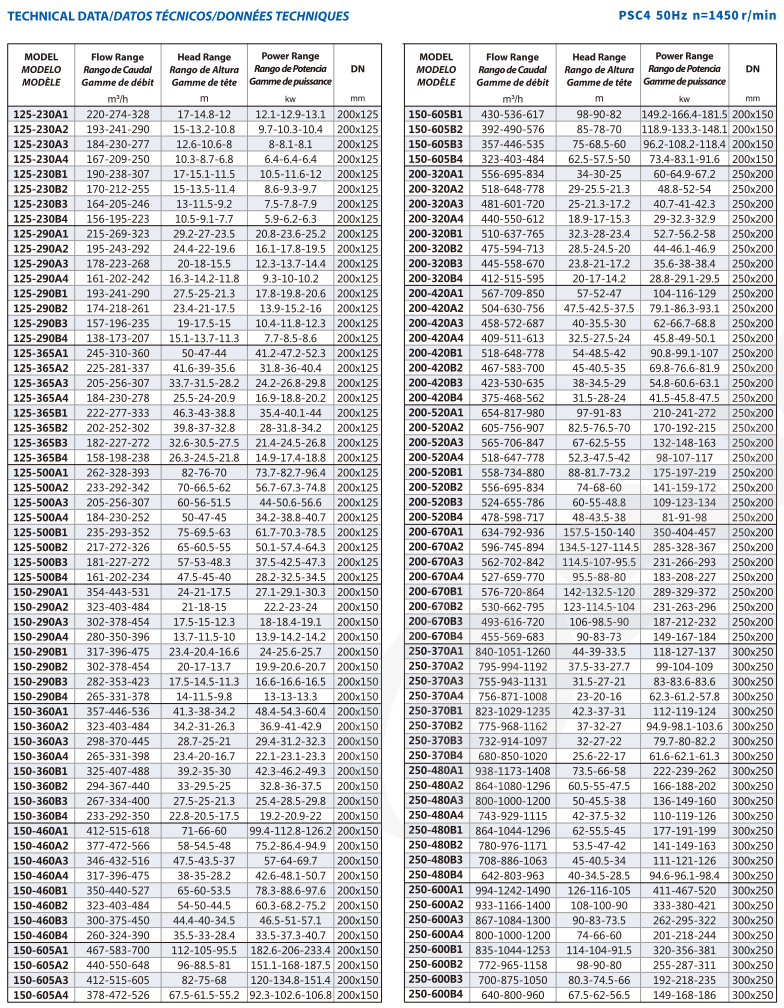

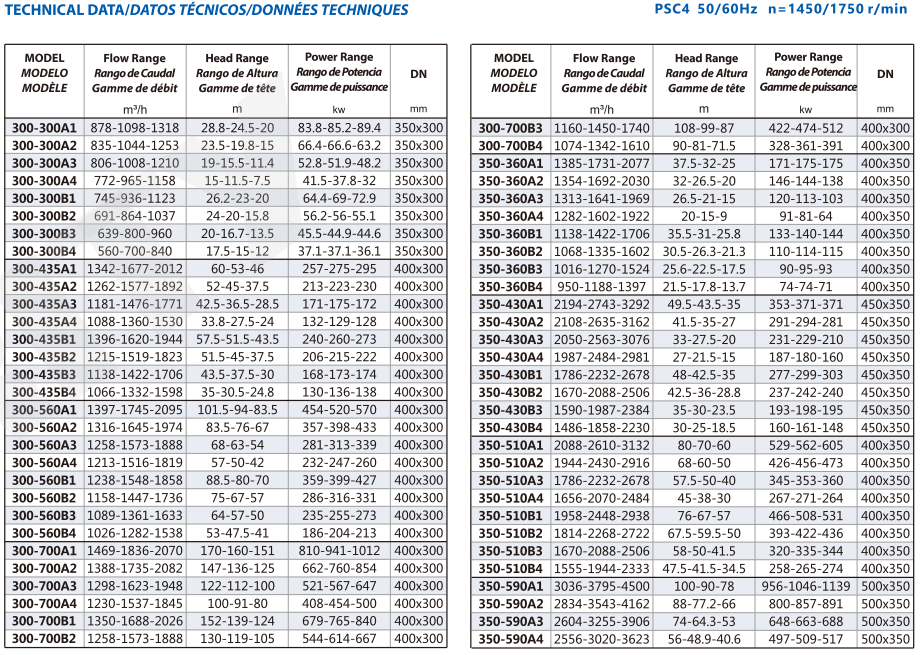

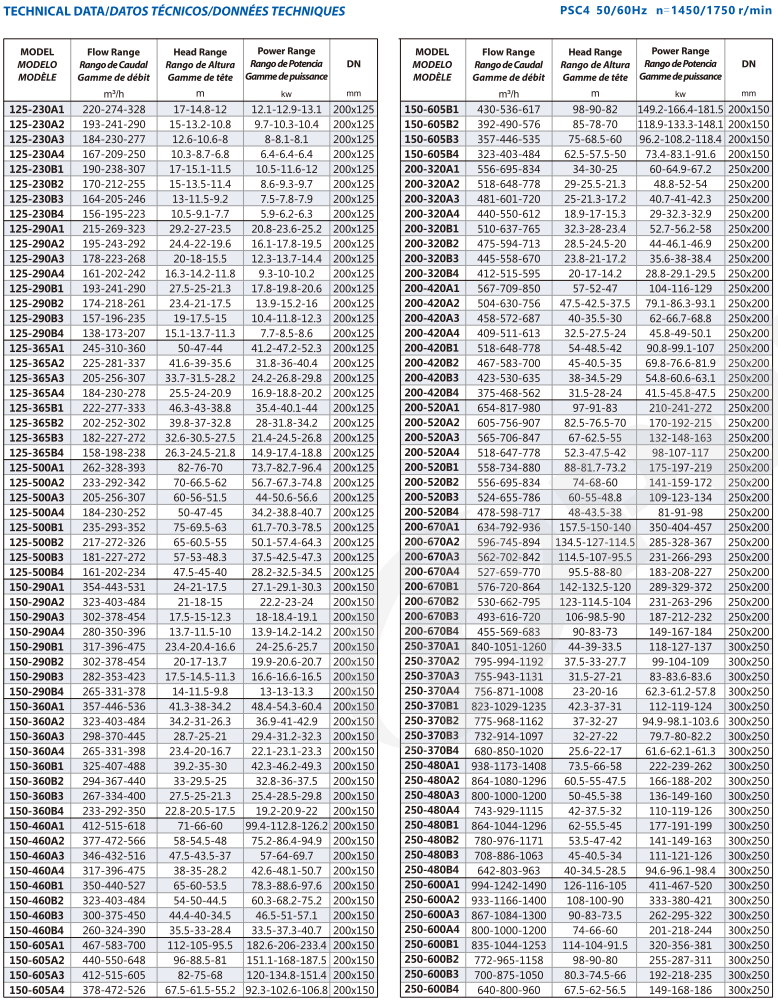

TECHNICAL DATA


Other Sizes  Can Provide On Request.

Send an email mina@purityfire.com for more information !


MATERIAL DESCRIPTION
