PSTB2

مضخة طرد مركزي قياسية EN733 بمحرك عالي الكفاءة

الوصف الفني
· مضخة طرد مركزي جديدة EN733
· التصميم الأصلي من PURITY (حاصل على براءة اختراع)
· يتوفر كل من المحرك المربع والمحرك الدائري
· محرك YE3 عالي الكفاءة ، مع حماية IP55 فئة F.
· علبة المضخة بطلاء مضاد للتآكل
· المكره من الفولاذ المقاوم للصدأ AISI 304 أو الحديد الزهر
· عمود الدوران من الفولاذ المقاوم للصدأ AISI 304 أو الحديد المجلفن
· شفة مجلفنة مضادة مع براغي وصواميل وحشيات
· جودة تحمل NSK ، ختم الميكانيكية مقاومة التآكل
3D PRODUCT CHAT NOW

Product Description



TECHNICAL DESCRIPTION
New EN733 standard centrifugal pump
Original design by PURITY (patented)
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Galvanized counter flange with bolts, nuts and gaskets
Quality NSK bearing, wear resistance mechanical seal


APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The EN733 centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.

USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1

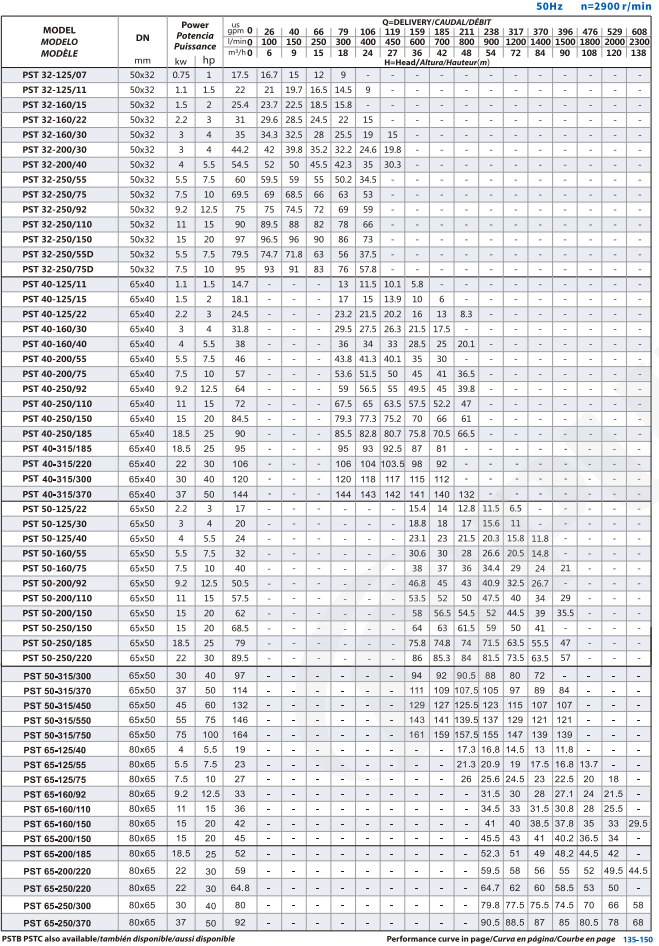

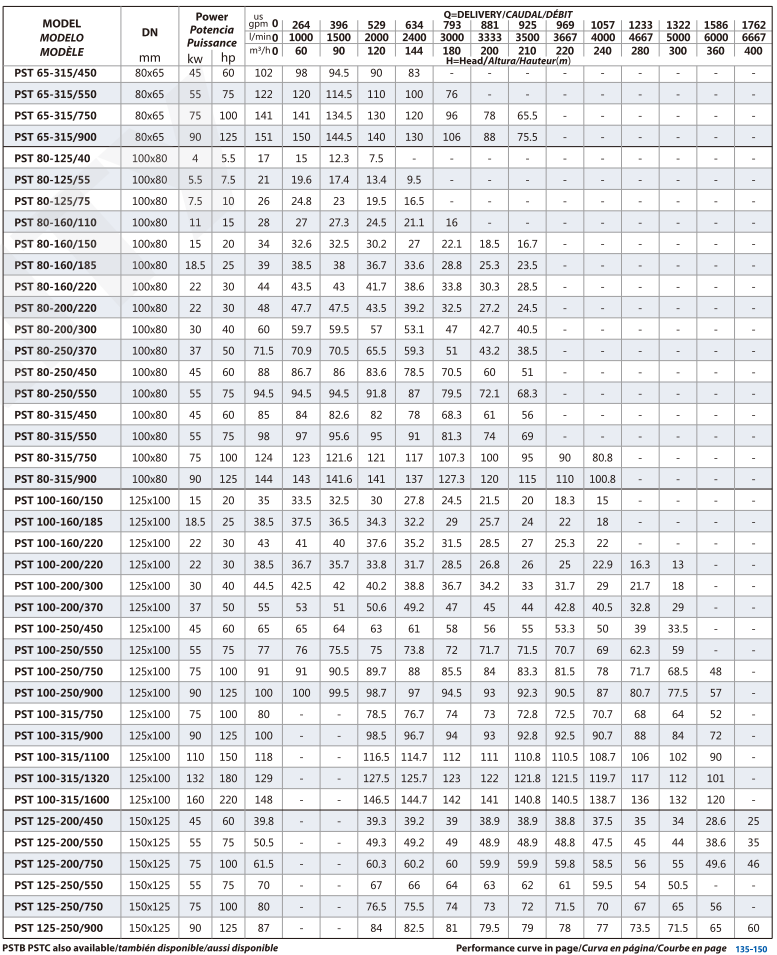

TECHNICAL DATA

Others sizes can provide on request.


Material Description


Dimension and Weight


Production Line



Packaging & Shipping



Our Exhibition



Certifications



Product Description



TECHNICAL DESCRIPTION
New EN733 standard centrifugal pump
Original design by PURITY (patented)
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Galvanized counter flange with bolts, nuts and gaskets
Quality NSK bearing, wear resistance mechanical seal


APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The EN733 centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.

USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1


TECHNICAL DATA

Others sizes can provide on request.


Material Description


Dimension and Weight


Production Line



Packaging & Shipping



Our Exhibition



Certifications
