[PSDC] مضخة شفط نهاية مضخة محرك الديزل مع لوحة التحكم لمضخة الحريق

الوصف الفني
· مضخة طرد مركزي جديدة EN733
· التصميم الأصلي من PURITY (حاصل على براءة اختراع)
·أكثر صداقة للبيئة
· انخفاض استهلاك الوقود
· قوة قوية
·سهل تجميعه
3D PRODUCT CHAT NOW

Related Products



Contact


Please send inquiry to mina@cnpurity.com for prompt reply !


Product Description



PV

TECHNICAL DESCRIPTION

TECHNICAL DESCRIPTION

New vertical multistage centrifugal pump
Original design by PURITY
Suction and discharge port in cast iron G20 thread
Quality NSK bearing, wear resistance mechanical seal


APPLICATIONS
Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The high efficiency and adaptability of these pumps to even

the most unusual of applications, makes them ideal for use in the domestic,

civil and industrial sectors; in particular for the distribution of

water in combination with pressure sets and for pressure boosting.


USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 25 bar
Continuous service S1

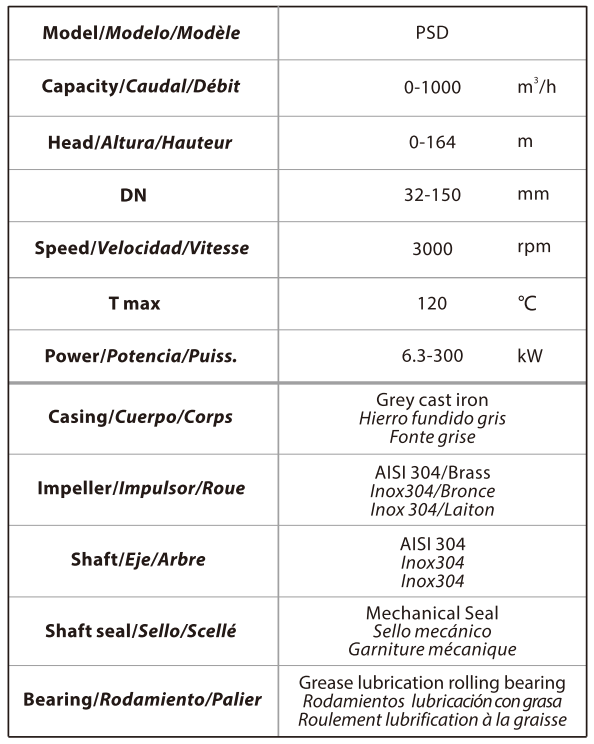

MATERIAL DESCRIPTION



DIMENSION AND WEIGHT





PD
TECHNICAL DESCRIPTION
More Environmentally Friendly
Meeting China III Emission Standard
Low Fuel Consumption
Strong Power
Easy To Assemble
APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The diesel engine pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.
USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1

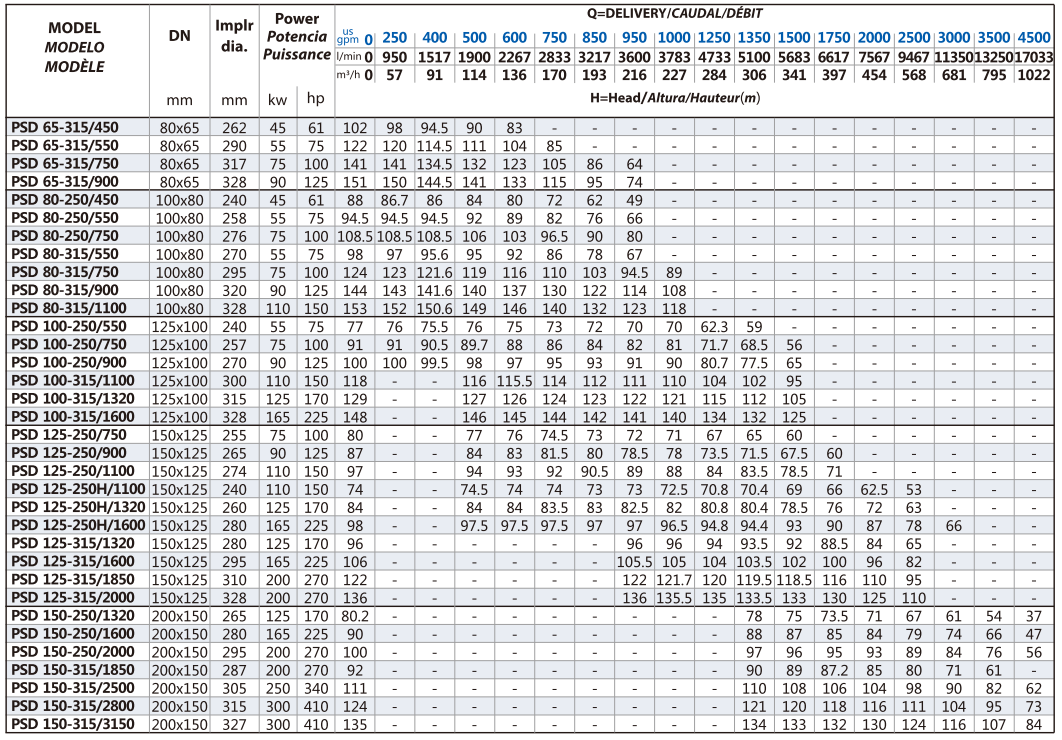

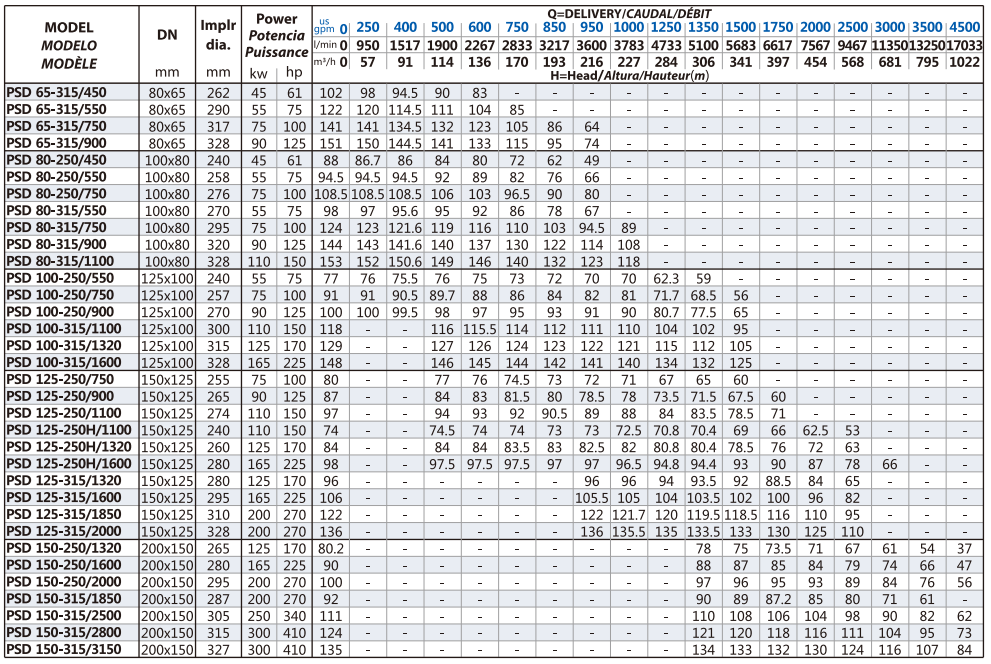

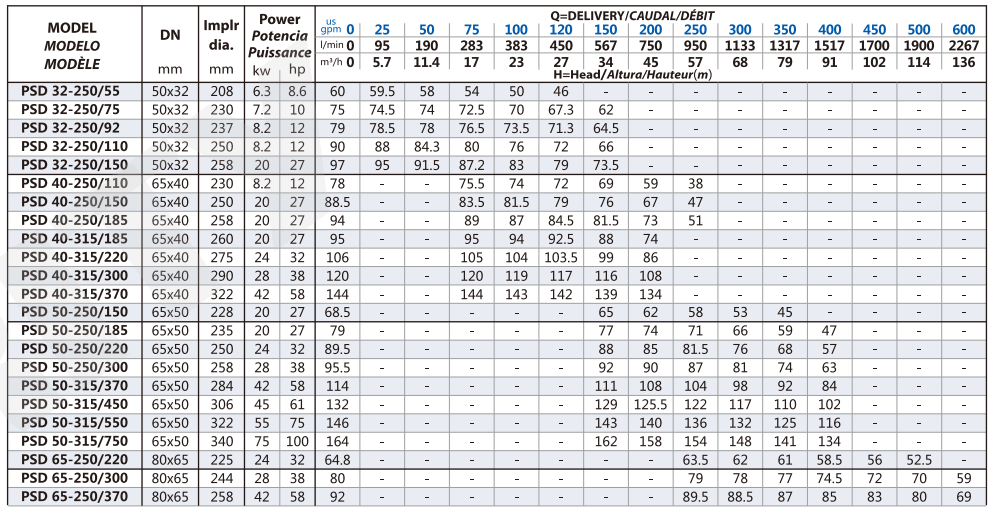

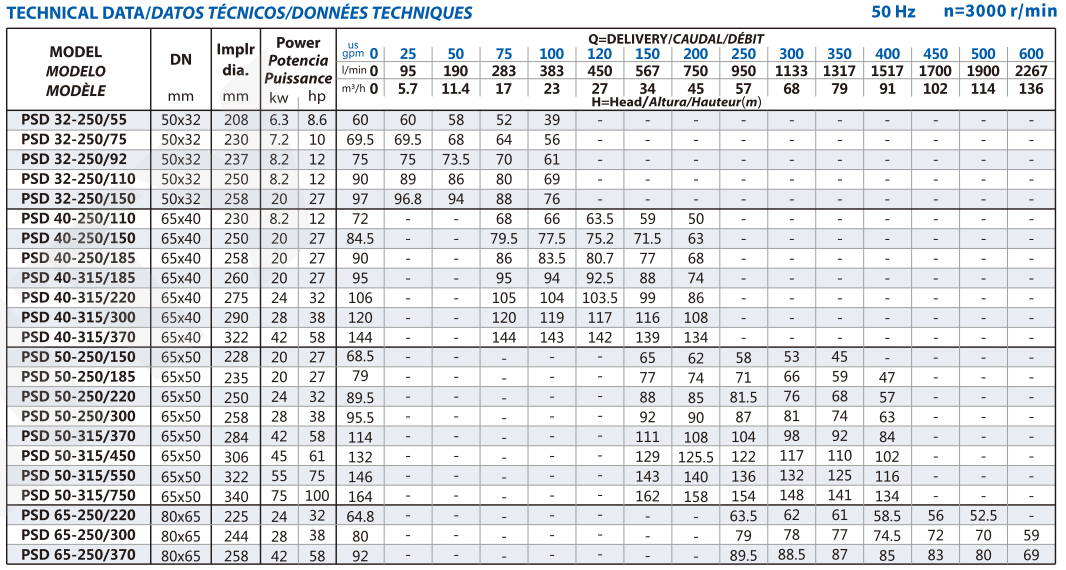

TECHNICAL DATA


Production Lines



Packaging & Shipping



Our Exhibition



Certifications



Related Products



Contact


Please send inquiry to mina@cnpurity.com for prompt reply !


Product Description



PV

TECHNICAL DESCRIPTION

TECHNICAL DESCRIPTION

New vertical multistage centrifugal pump
Original design by PURITY
Suction and discharge port in cast iron G20 thread
Quality NSK bearing, wear resistance mechanical seal


APPLICATIONS
Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The high efficiency and adaptability of these pumps to even

the most unusual of applications, makes them ideal for use in the domestic,

civil and industrial sectors; in particular for the distribution of

water in combination with pressure sets and for pressure boosting.


USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 25 bar
Continuous service S1


MATERIAL DESCRIPTION



DIMENSION AND WEIGHT





PD
TECHNICAL DESCRIPTION
More Environmentally Friendly
Meeting China III Emission Standard
Low Fuel Consumption
Strong Power
Easy To Assemble
APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The diesel engine pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.
USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1

TECHNICAL DATA
