[ PGW ] عالية الجودة خط أنابيب الطرد المركزي مضخة الطرد المركزي مضخة سعر

ملاحظة فنية
· نوع جديد من مضخة الطرد المركزي
· نقاء التصميم الأصلي ( براءات الاختراع )
· YE3 عالية الكفاءة للسيارات ، وحماية الصف IP55 واو
· غلاف المضخة مع طلاء مضادة للتآكل
· الفولاذ المقاوم للصدأ ايسي 304 أو الحديد الزهر المكره
· رمح مصنوع من الفولاذ المقاوم للصدأ ايسي 304 أو الحديد المجلفن
· محامل عالية الجودة ، وارتداء مقاومة الأختام الميكانيكية
3D PRODUCT CHAT NOW

Related Products



Product Description



TECHNICAL DESCRIPTION

New centrifugal pump

Original design by PURITY (patented)

YE3 high efficient motor, with protection IP55 class F

Pump case with anti-corrosive coating

Impeller in stainless steel AISI 304 or cast iron

Shaft in stainless steel AISI 304 or galvanized iron

Quality bearing, wear resistance mechanical seal


APPLICATIONS

Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The centrifugal pumps are recommended for use in water supply,

cleaning sets, pressure boosting, firefighting sets, irrigation, industrial

applications, water circulation in climatisation sets, agricultural.


USING LIMITS

Liquid temperature between -10℃ and +120℃

Ambient temperature up to +50℃

Max. working pressure 16 bar

Continuous service S1

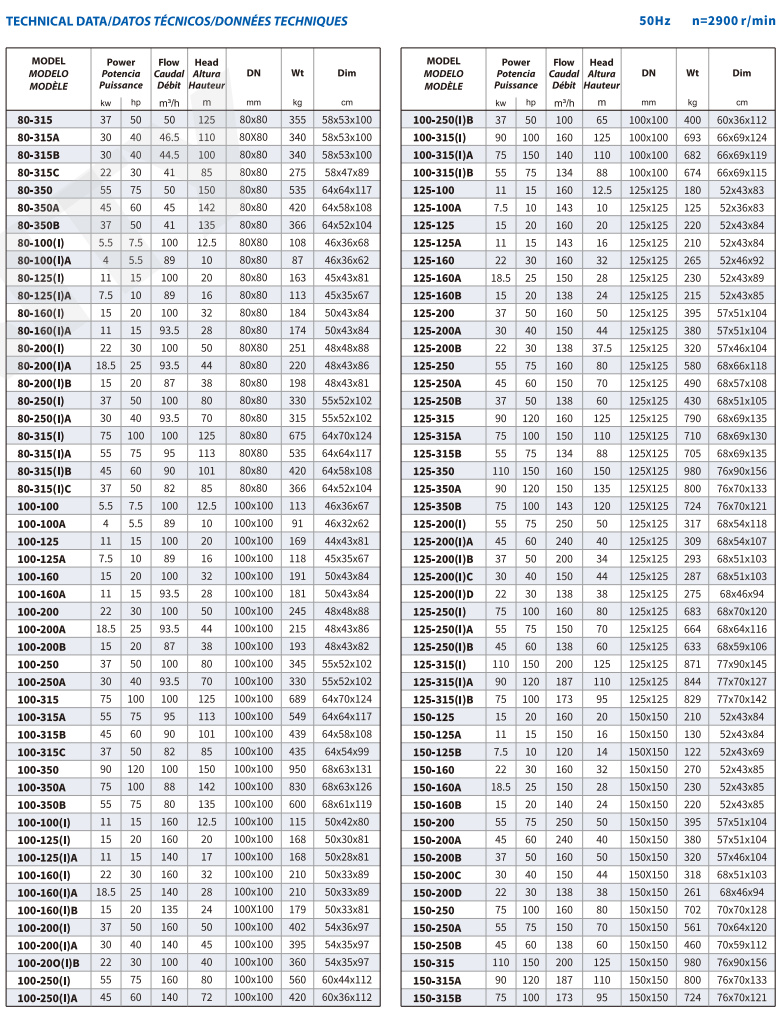

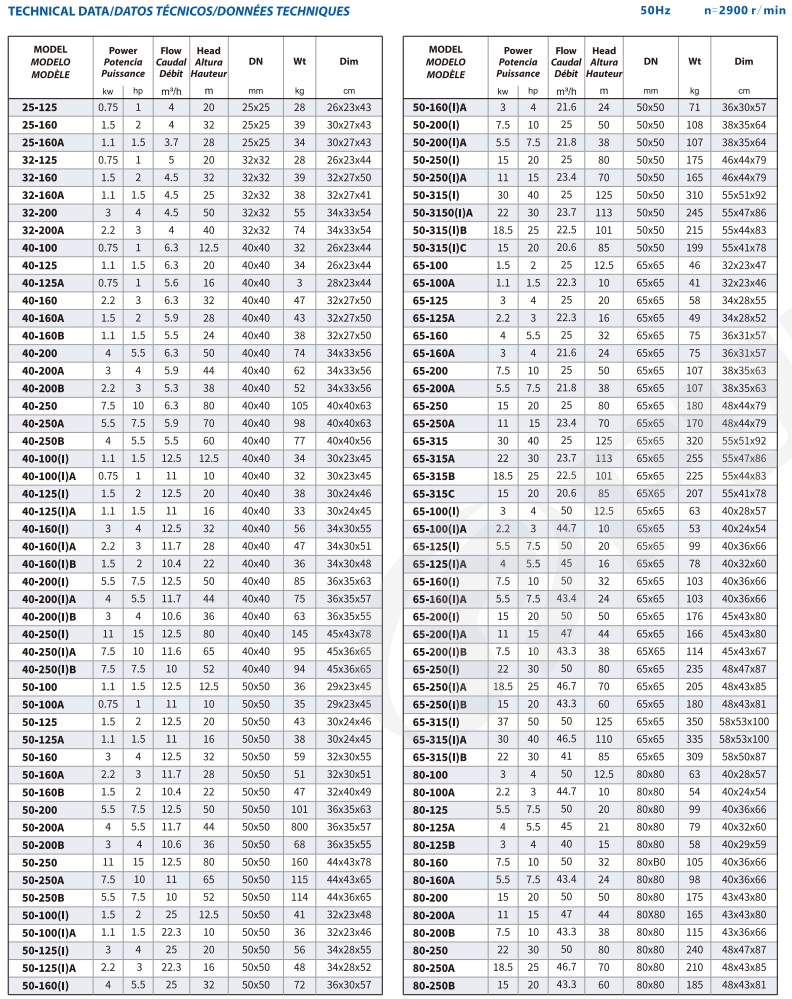

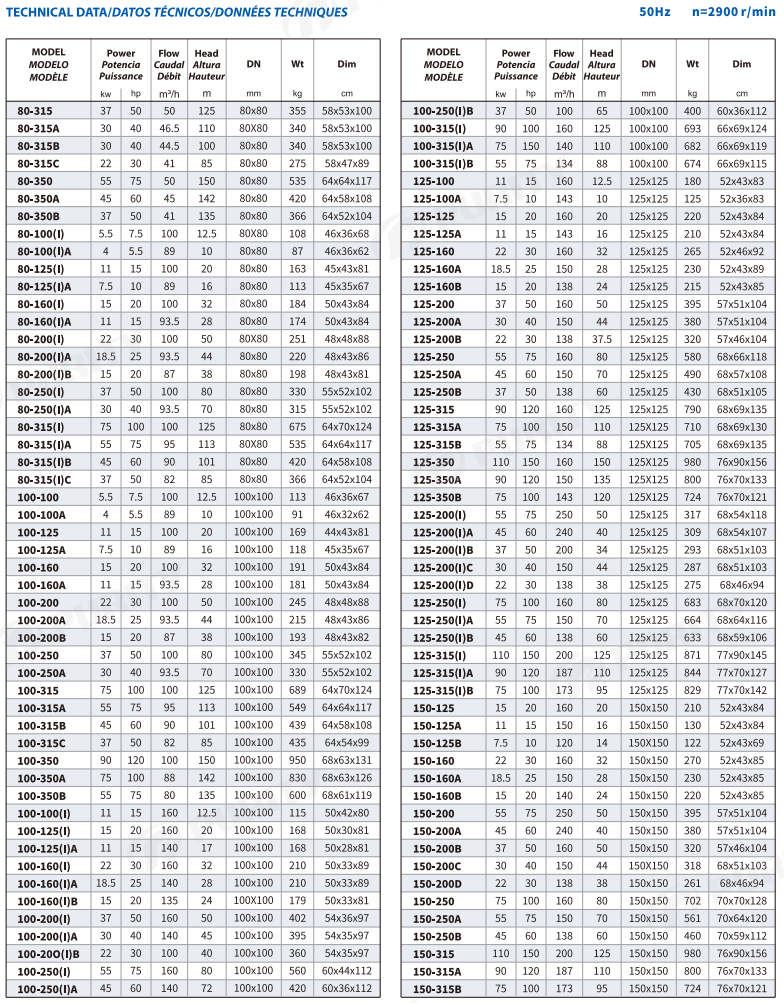

TECHNICAL DATA / DATOS TéCNICOS                                                     50Hz   n=2900  1/min


TECHNICAL DATA / DATOS TéCNICOS                                                     50Hz   n=2900  1/min


TECHNICAL DATA / DATOS TéCNICOS                                                     50Hz   n=1450  1/min

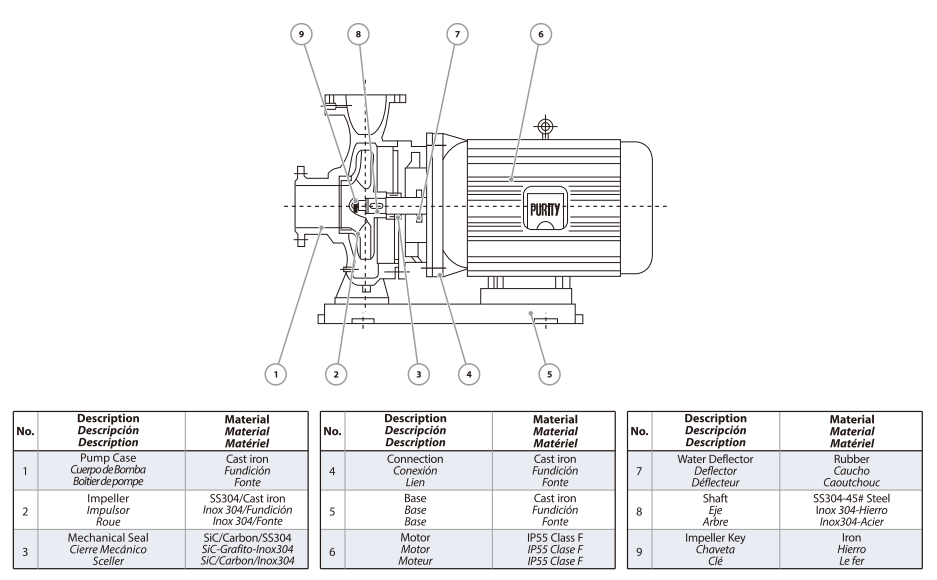

No.

Description

Material

No.

Description

Material

No.

Description

Material

1

Bearing

Ball Bearing

4

Impeller

SS304/Cast iron

7

Mechanical Seal

SiC/Carbon/SS304

2

Water Deflector

Rubber

5

Impeller Nut

Galvanizated Steel

8

Connection

Cast iron

3

Pump Case

Cast iron

6

Shaft

SS304/45# Steel

9

Motor

IP55 Class F

Contact Us


Please send inquiry to mina@cnpurity.com for prompt reply !


Production Line



Packaging & Shipping



Our Exhibition



Certifications



Related Products



Product Description



TECHNICAL DESCRIPTION

New centrifugal pump

Original design by PURITY (patented)

YE3 high efficient motor, with protection IP55 class F

Pump case with anti-corrosive coating

Impeller in stainless steel AISI 304 or cast iron

Shaft in stainless steel AISI 304 or galvanized iron

Quality bearing, wear resistance mechanical seal


APPLICATIONS

Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The centrifugal pumps are recommended for use in water supply,

cleaning sets, pressure boosting, firefighting sets, irrigation, industrial

applications, water circulation in climatisation sets, agricultural.


USING LIMITS

Liquid temperature between -10℃ and +120℃

Ambient temperature up to +50℃

Max. working pressure 16 bar

Continuous service S1

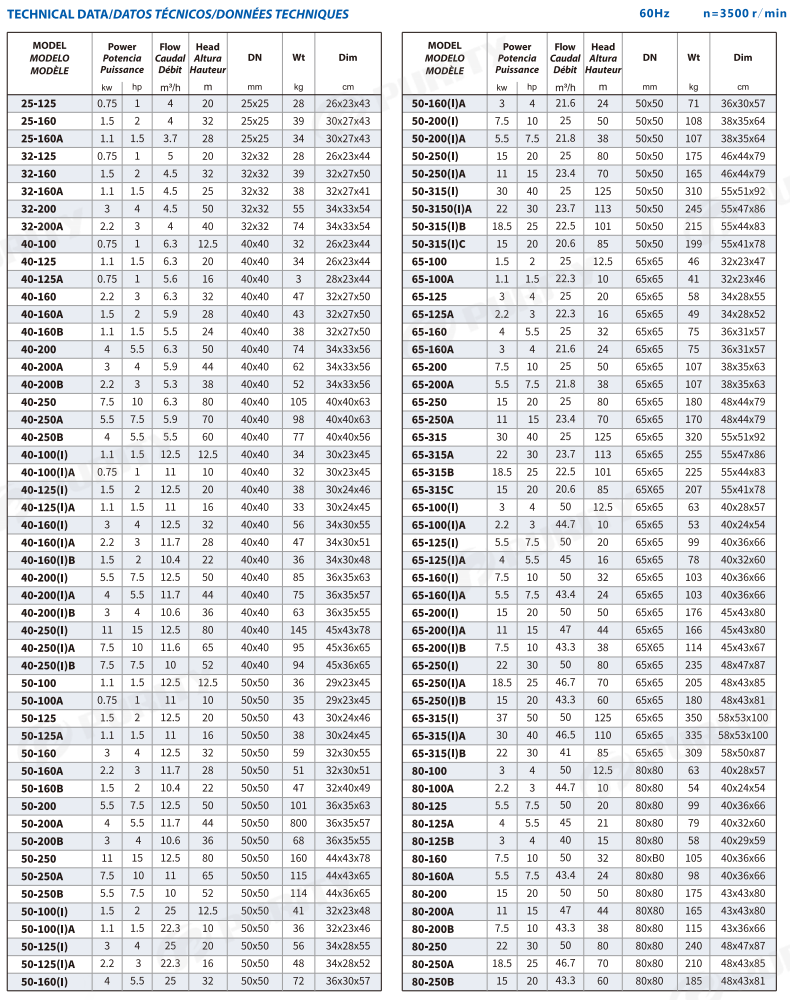

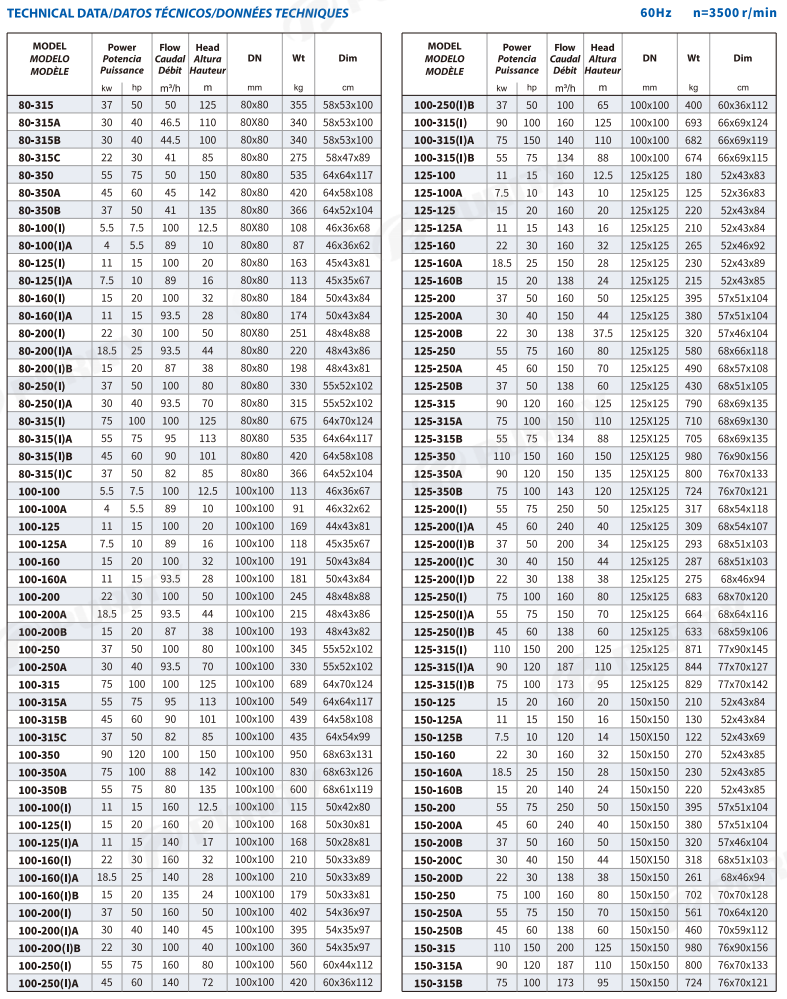

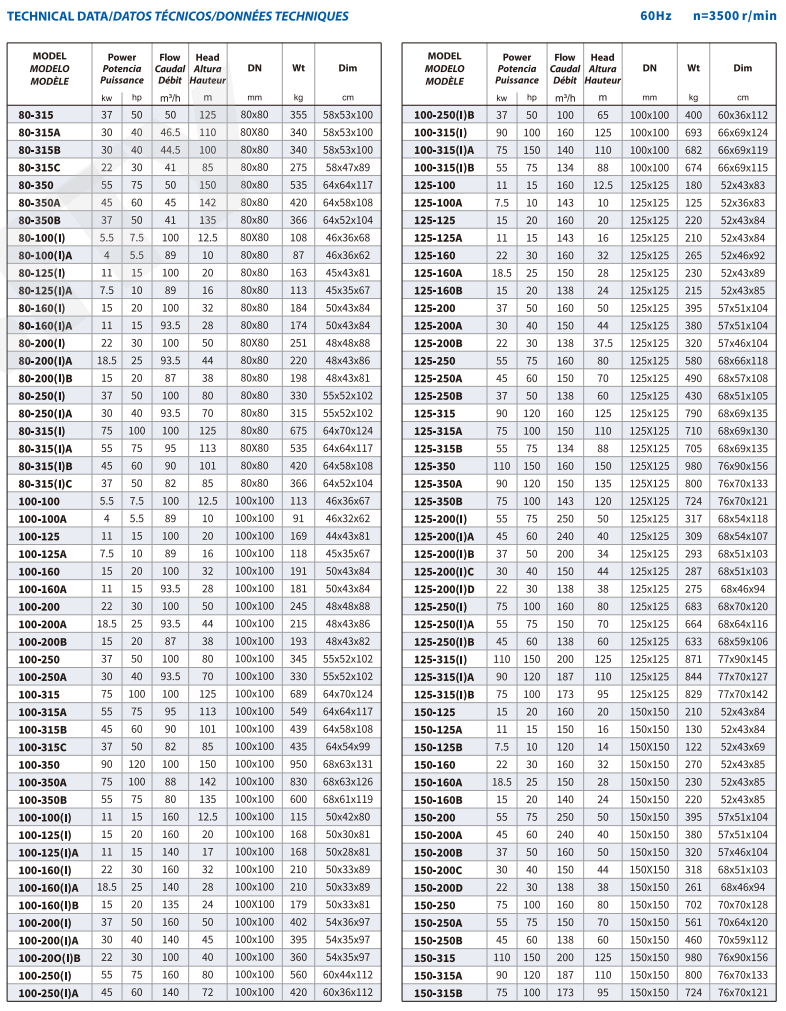

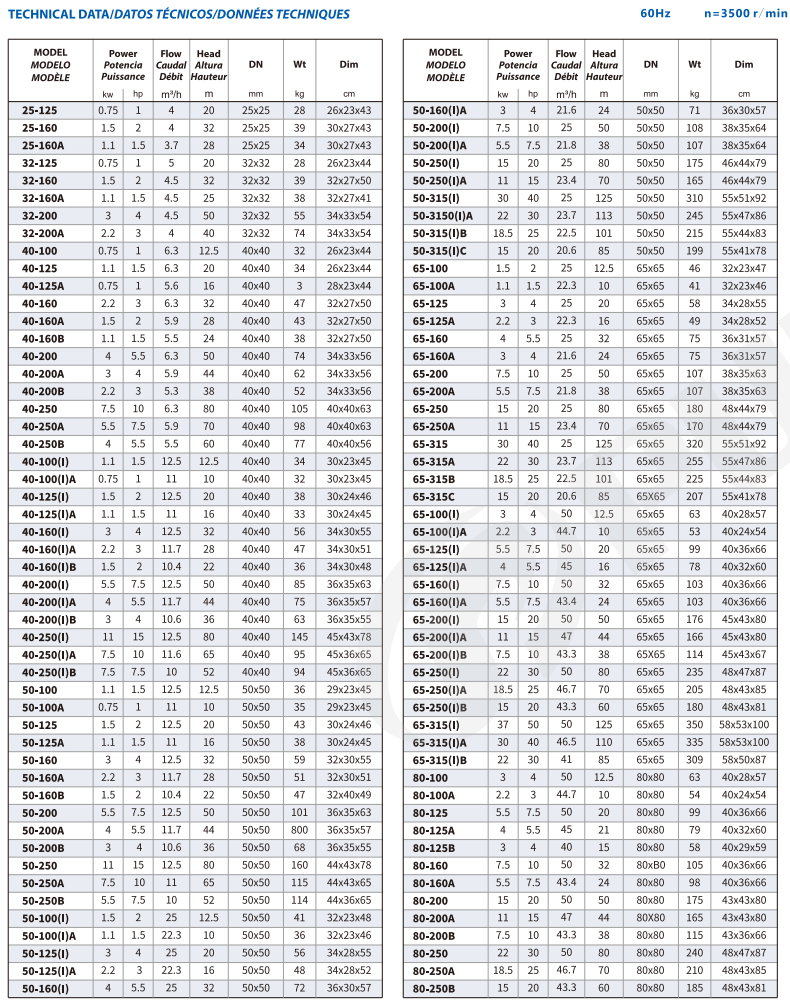

TECHNICAL DATA / DATOS TéCNICOS                                                     60Hz   n=3500  1/min


TECHNICAL DATA / DATOS TéCNICOS 60Hz   n=3500  1/min


TECHNICAL DATA / DATOS TéCNICOS 60Hz   n=1750  1/min



No.

Description

Material

No.

Description

Material

No.

Description

Material

1

Bearing

Ball Bearing

4

Impeller

SS304/Cast iron

7

Mechanical Seal

SiC/Carbon/SS304

2

Water Deflector

Rubber

5

Impeller Nut

Galvanizated Steel

8

Connection

Cast iron

3

Pump Case

Cast iron

6

Shaft

SS304/45# Steel

9

Motor

IP55 Class F
