[ توقيت المحيط الهادي ] معيار مضخة الطرد المركزي مع محرك كفاءة عالية

ملاحظة فنية
· نموذج EN733 القياسية مضخة الطرد المركزي
· نقاء التصميم الأصلي ( براءات الاختراع )
· المحركات الكهربائية مربع ومحركات دائرية متوفرة
· YE3 عالية الكفاءة للسيارات ، وحماية الصف IP55 واو
· غلاف المضخة مع طلاء مضادة للتآكل
· الفولاذ المقاوم للصدأ ايسي 304 أو الحديد الزهر المكره
· رمح مصنوع من الفولاذ المقاوم للصدأ ايسي 304 أو الحديد المجلفن
· حفزت شفة عكس مع البراغي والمكسرات وغسالات
· محامل NSK عالية الجودة ، وارتداء مقاومة الأختام الميكانيكية
3D PRODUCT CHAT NOW

Product Description




TECHNICAL DESCRIPTION

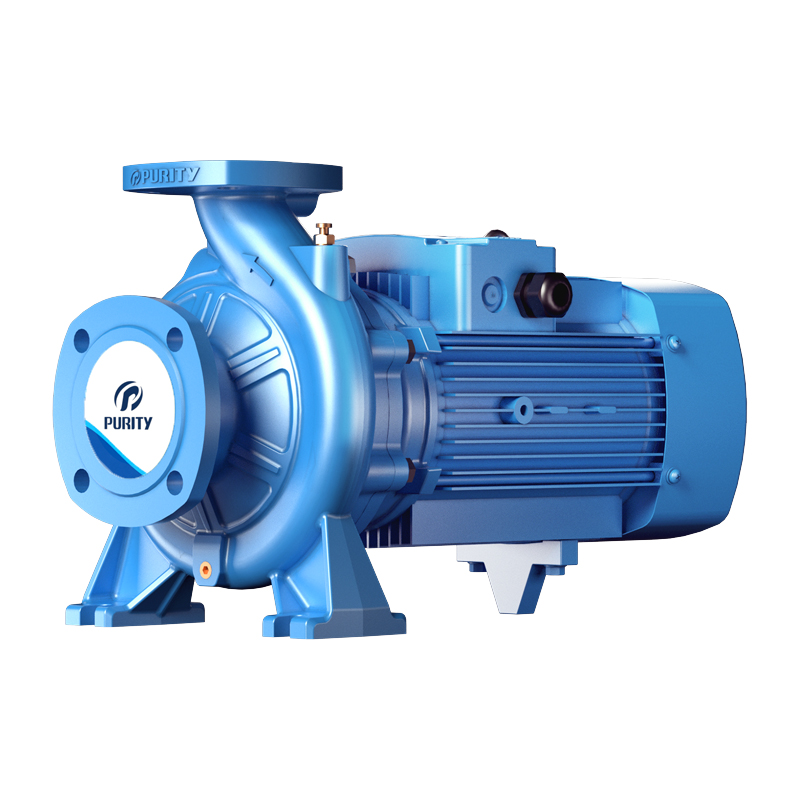

New EN733 standard centrifugal pump
Original design by PURITY (patented)
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Galvanized counter flange with bolts, nuts and gaskets
Quality NSK bearing, wear resistance mechanical seal


APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The EN733 centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.

USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1

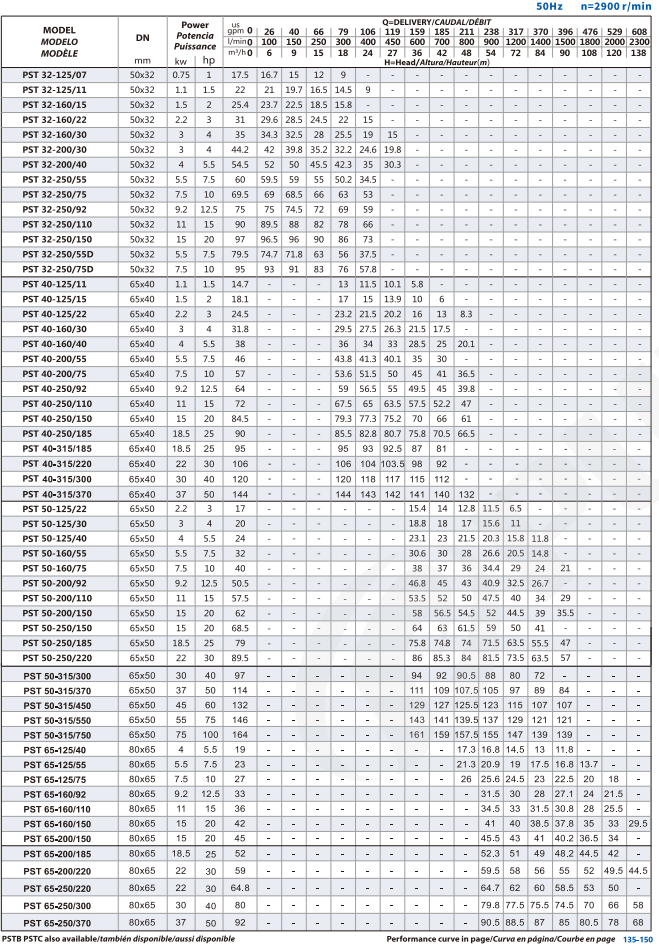

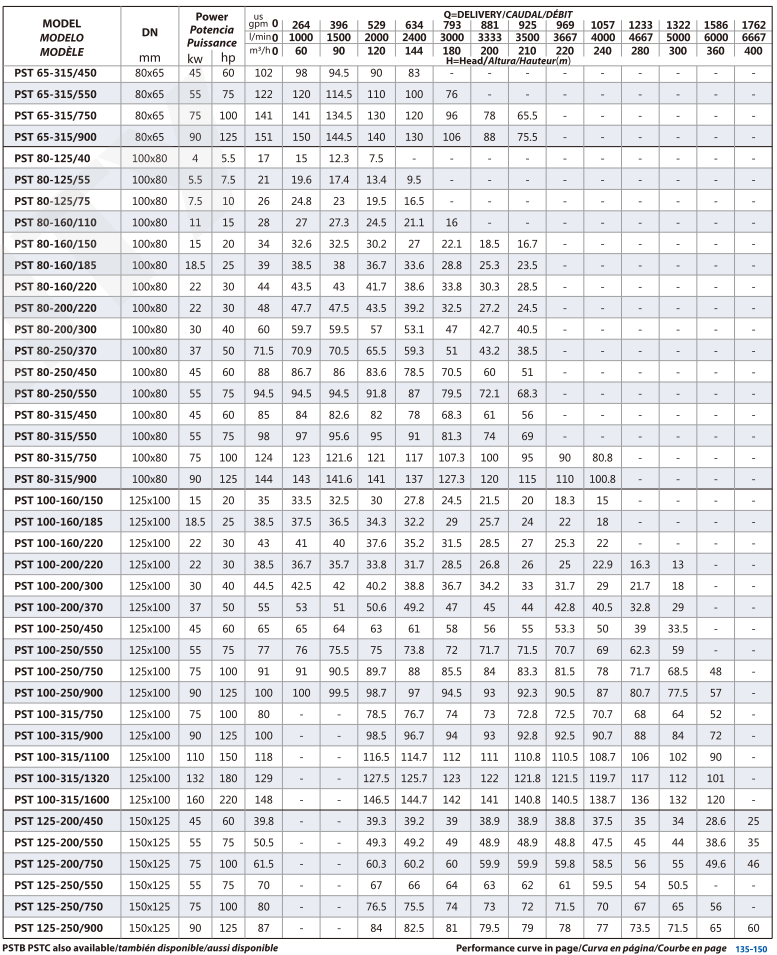

TECHNICAL DATA / DATOS TéCNICOS                                                         50Hz   n=2900  1/min


Other Sizes  Can Provide On Request.


Contact Us



Material Description

Production Line



Packaging & Shipping



Our Exhibition



Certifications



Product Description




TECHNICAL DESCRIPTION
New EN733 standard centrifugal pump
Original design by PURITY (patented)
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Galvanized counter flange with bolts, nuts and gaskets
Quality NSK bearing, wear resistance mechanical seal


APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The EN733 centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.

USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1

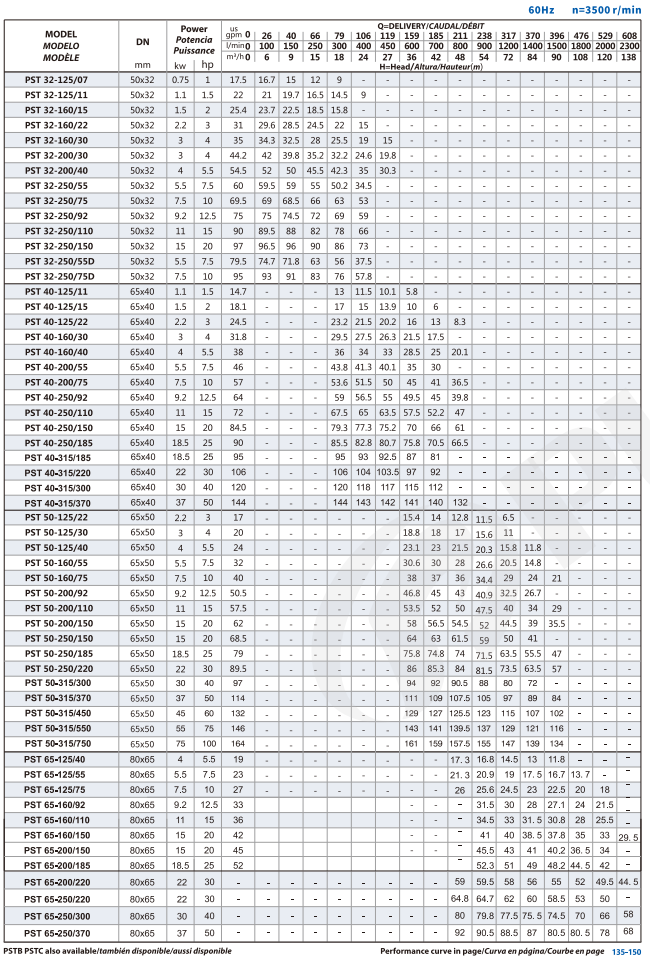

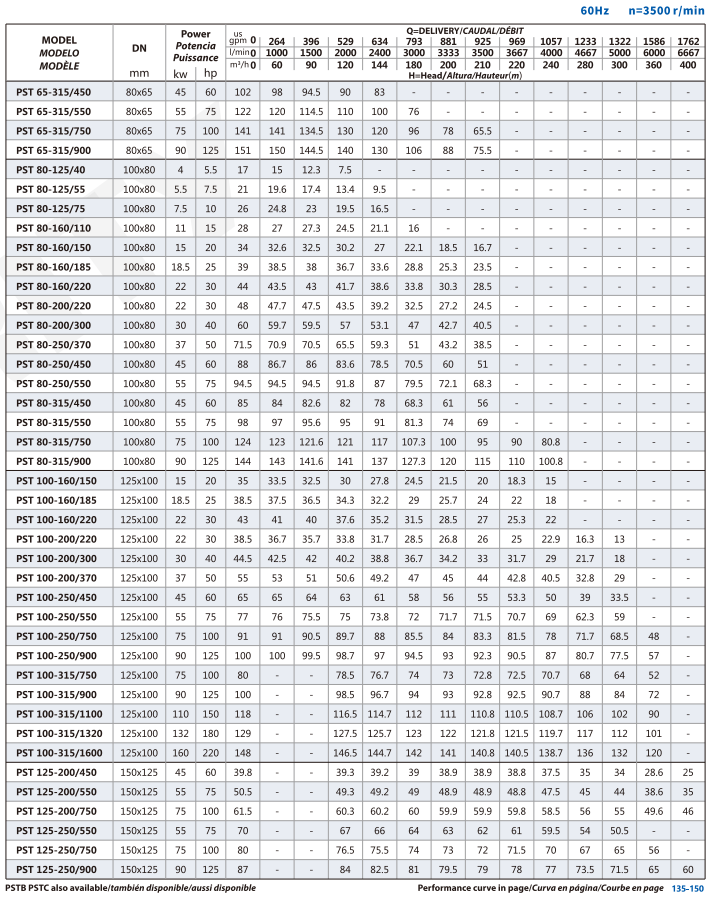

TECHNICAL DATA                                                       60Hz   n=3500  1/min


Other Sizes  Can Provide On Request.


Contact Us



Material Description

Production Line



Packaging & Shipping



Our Exhibition



Certifications
