الطرد المركزي مضخة أفقية متوسطة مفتوحة مع محرك كهربائي أو محرك الديزل

ملاحظة فنية
· رواية تقسيم نوع مضخة
· نقاء التصميم الأصلي ( براءات الاختراع )
· يمكن أن تكون مجهزة بمحركات كهربائية أو محركات الديزل
· من السهل سحب من محرك الأقراص إلى الوراء
· مضخة الإسكان مع طلاء مضادة للتآكل HT250
· المكره مصنوعة من الفولاذ المقاوم للصدأ ايسي 304 أو HT250
· رمح مصنوع من الفولاذ المقاوم للصدأ ايسي 304 أو الحديد المجلفن
· محامل عالية الجودة / الأختام الميكانيكية / الغدة التعبئة

3D PRODUCT CHAT NOW

Product Description



TECHNICAL DESCRIPTION

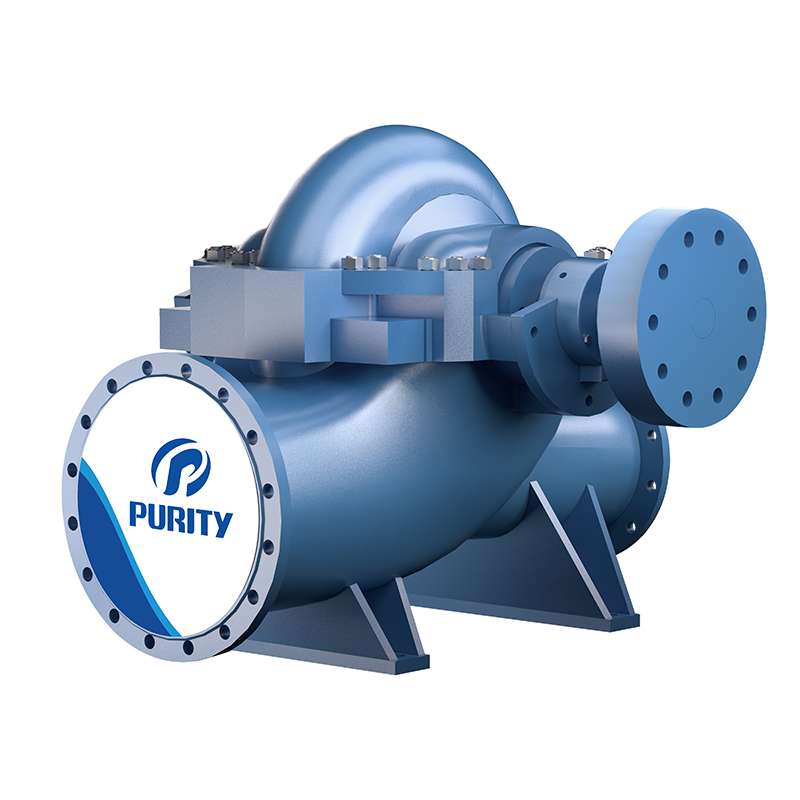

New split case pump
Original design by PURITY (patented)
Available complete with electric motor or diesel engine
Easily back pull-out from driver
Pump case with anti-corrosive coating HT250
Impeller in stainless steel AISI 304 or HT250
Shaft in stainless steel AISI 304 or galvanized iron
Quality bearing,mechanical seal/gland packing


APPLICATIONS
Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The split case pumps are recommended for use in water supply,

cleaning sets, pressure boosting, firefighting sets, irrigation, industrial

applications, water circulation in climatisation sets, agricultural.


USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 25 bar
Continuous service S1

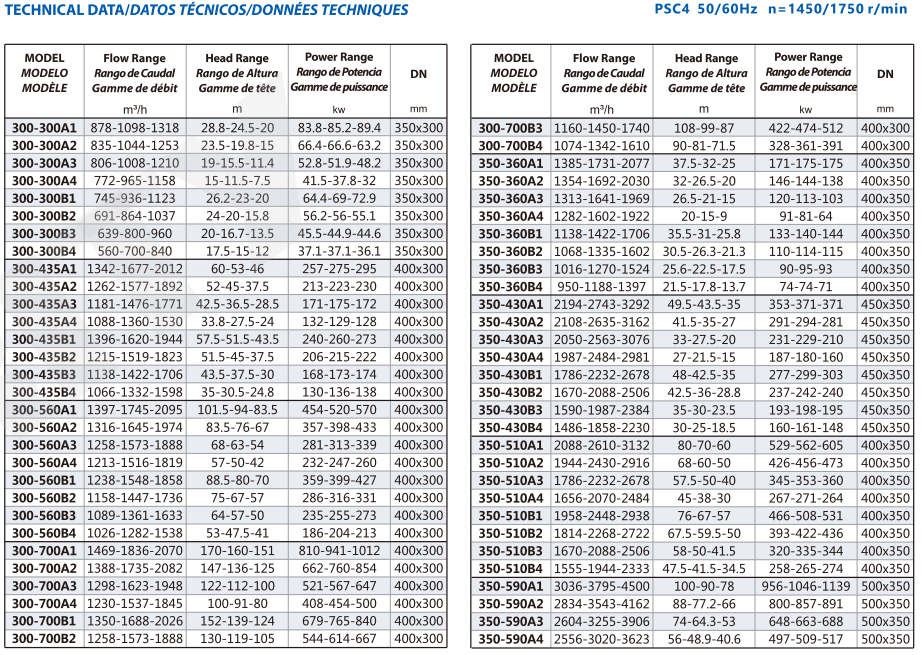

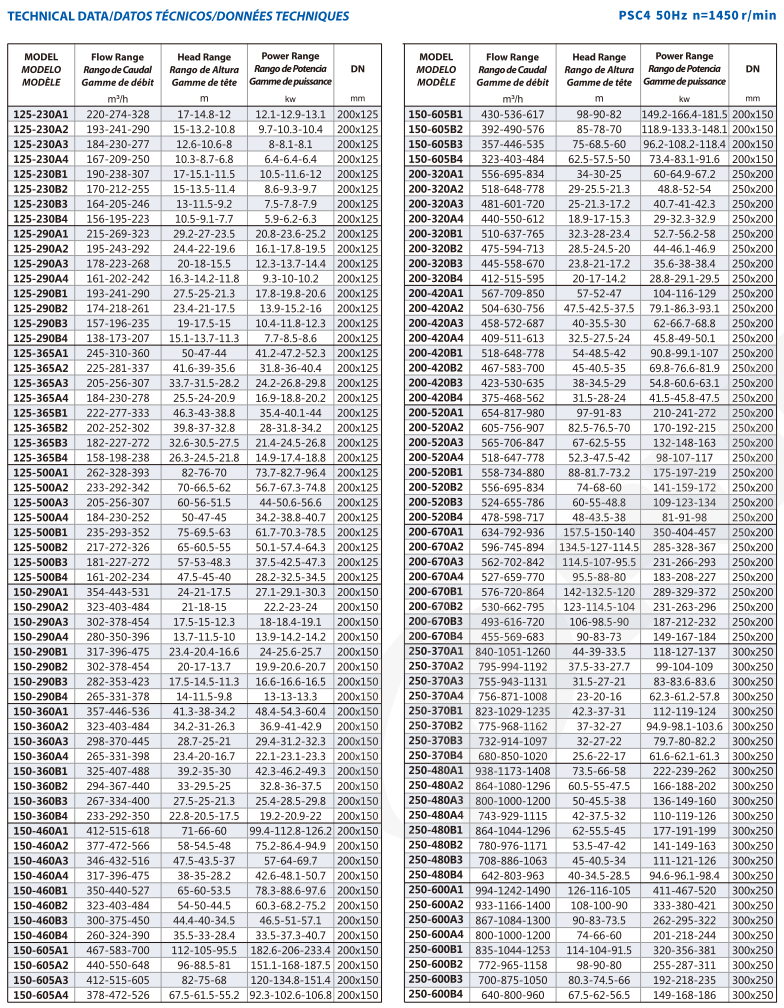

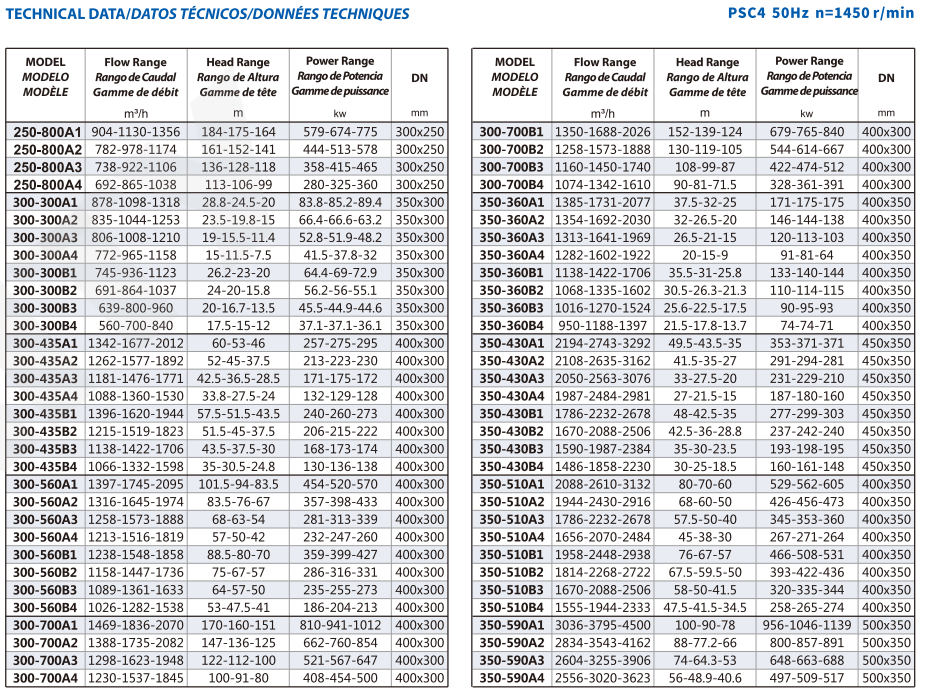

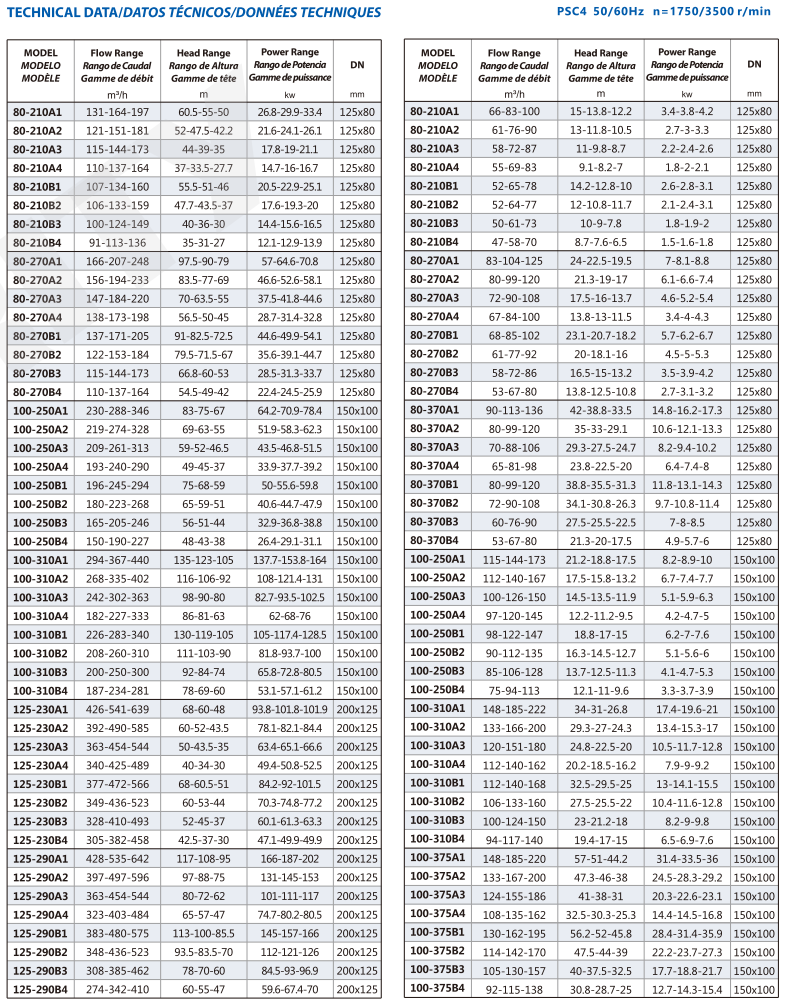

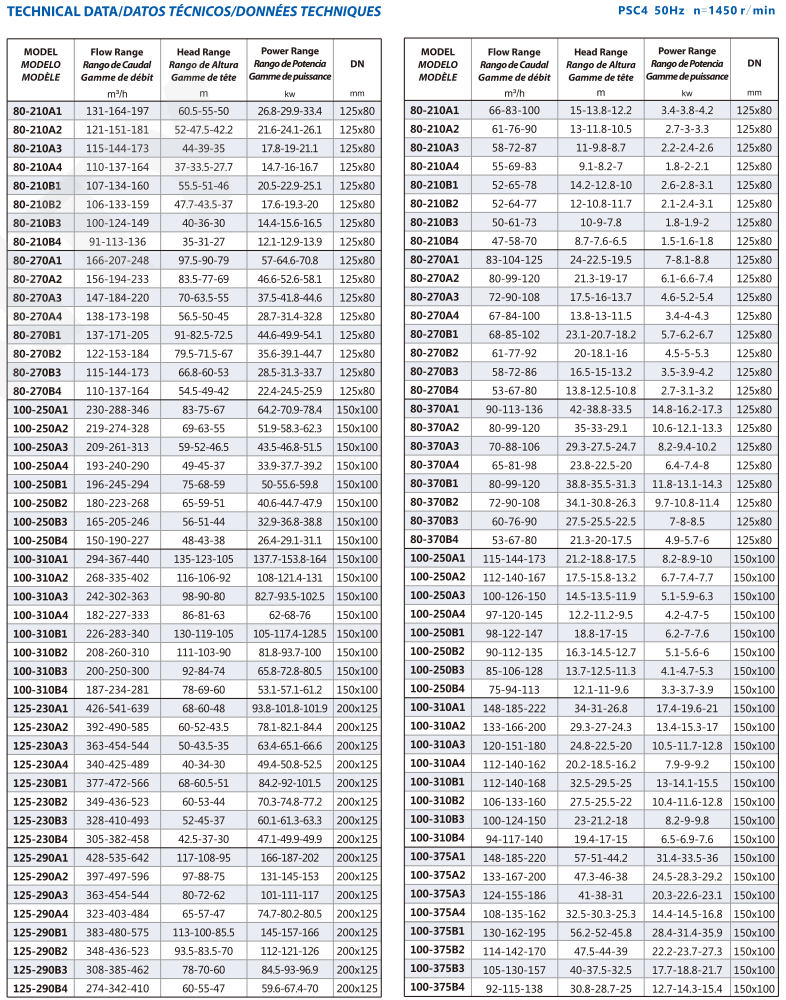

TECHNICAL DATA


Other Sizes  Can Provide On Request.
