GDL

عمودي خط مستقيم مضخة معززة

ملاحظة فنية
· نوع جديد عمودي متعدد المراحل مضخة الطرد المركزي
· التصميم الأصلي النقي
· المحركات الكهربائية مربع ومحركات دائرية متوفرة
· YE3 عالية الكفاءة للسيارات ، وحماية الصف IP55 واو
· غلاف المضخة مع طلاء مضادة للتآكل
· رمح مصنوع من الفولاذ المقاوم للصدأ ايسي 304 أو الحديد المجلفن
· الحديد الزهر G20 الخيوط - مدخل ومخرج
· محامل NSK عالية الجودة ، وارتداء مقاومة الأختام الميكانيكية
3D PRODUCT CHAT NOW

Product Description






TECHNICAL DESCRIPTION

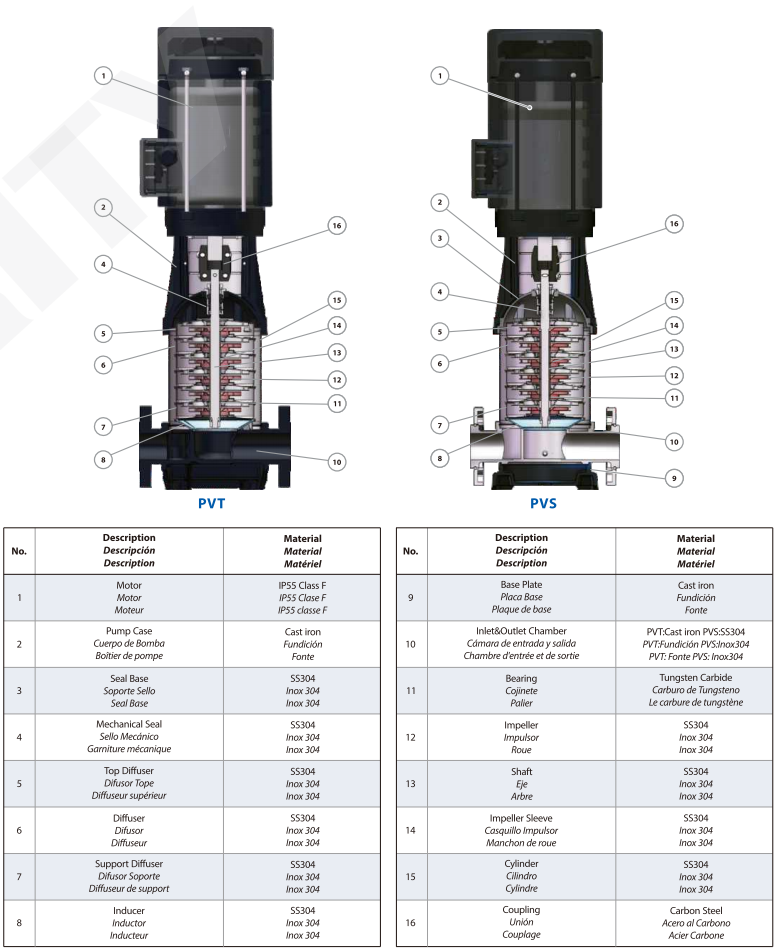

New vertical multistage centrifugal pump
Original design by PURITY
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Shaft in stainless steel AISI 304 or galvanized iron
Suction and discharge port in cast iron G20 thread
Quality NSK bearing, wear resistance mechanical seal
APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The high efficiency and adaptability of these pumps to even the most
unusual of applications, makes them ideal for use in the domestic,
civil and industrial sectors; in particular for the distribution of water
in combination with pressure sets and for pressure boosting.
USING LIMITS
Medium temperature: -15℃~+120℃
Maximum working pressure: 2.5MPa
Ambient temperature: ≤+40℃



Other Sizes  Can Provide On Request.
