[ الكهروضوئية ] ارتفاع ضغط متعدد المراحل مضخة الطرد المركزي الرأسي استقرار النبات

ملاحظة فنية
· نوع جديد عمودي متعدد المراحل مضخة الطرد المركزي
· التصميم الأصلي النقي
· المحركات الكهربائية مربع ومحركات دائرية متوفرة
· YE3 عالية الكفاءة للسيارات ، وحماية الصف IP55 واو
· غلاف المضخة مع طلاء مضادة للتآكل
· تكنو بوليمر في المكره
· رمح مصنوع من الفولاذ المقاوم للصدأ ايسي 304 أو الحديد المجلفن
· الحديد الزهر G20 الخيوط - مدخل ومخرج
· محامل NSK عالية الجودة ، وارتداء مقاومة الأختام الميكانيكية
3D PRODUCT CHAT NOW

Product Description


TECHNICAL DESCRIPTION
New vertical multistage centrifugal pump
Original design by PURITY
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Impeller in techno-polimer
Shaft in stainless steel AISI 304 or galvanized iron
Suction and discharge port in cast iron G20 thread
Quality NSK bearing, wear resistance mechanical seal


APPLICATIONS
Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The high efficiency and adaptability of these pumps to even the most

unusual of applications, makes them ideal for use in the domestic,

civil and industrial sectors; in particular for the distribution of water

in combination with pressure sets and for pressure boosting.


USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 25 bar
Continuous service S1

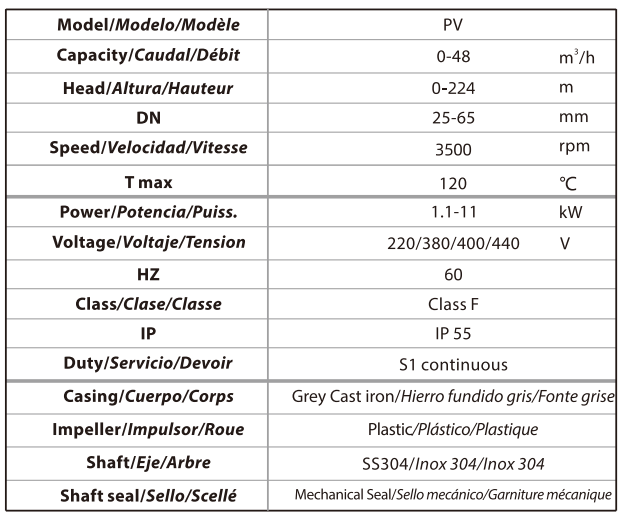

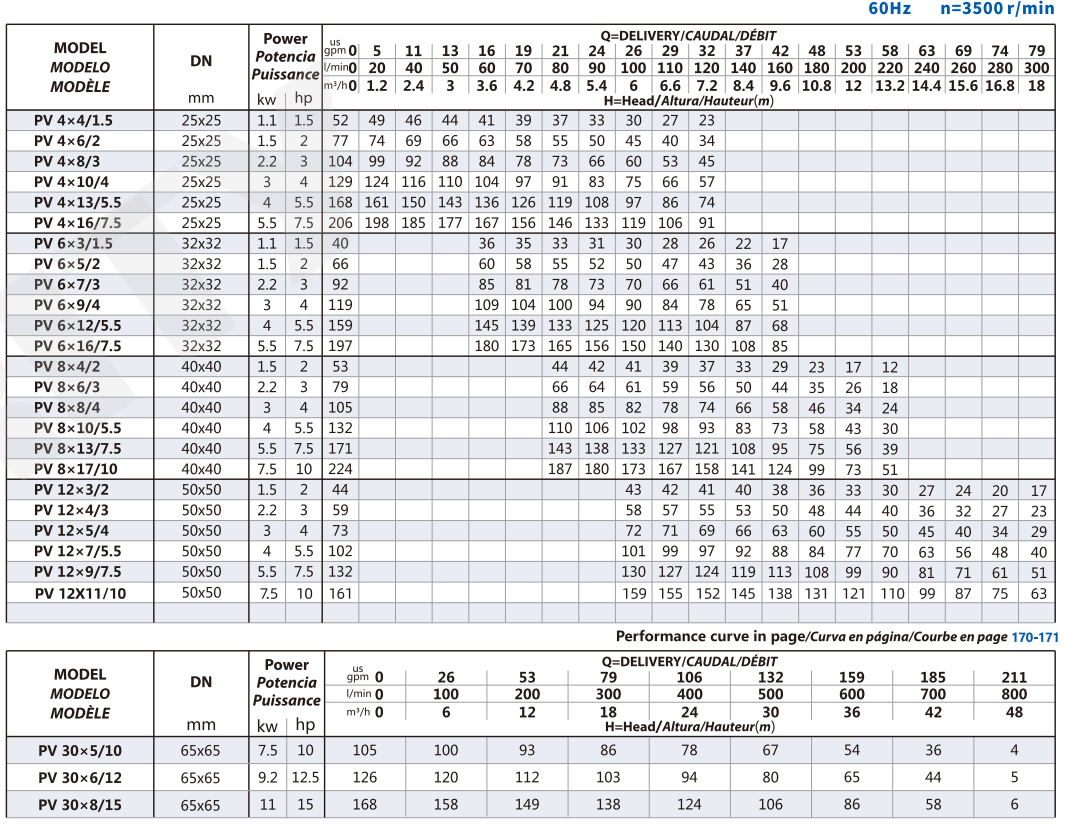

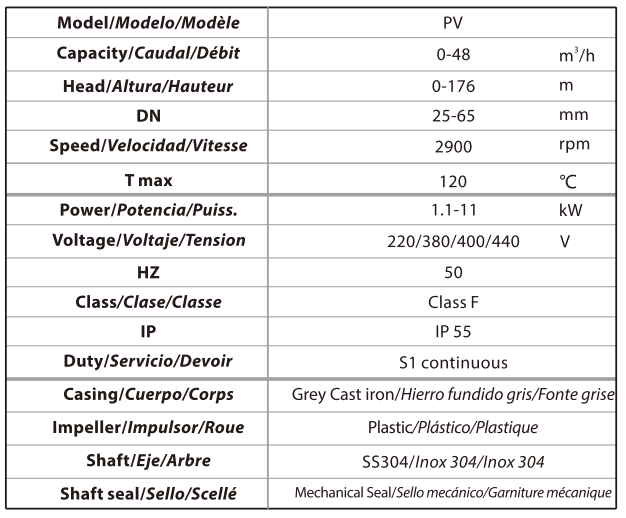

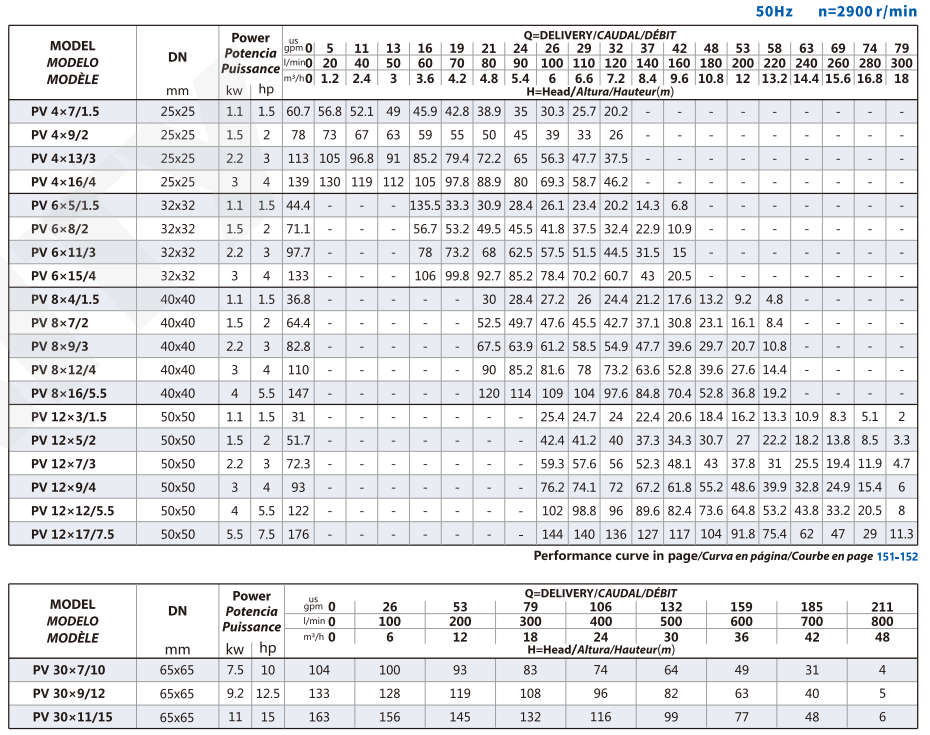

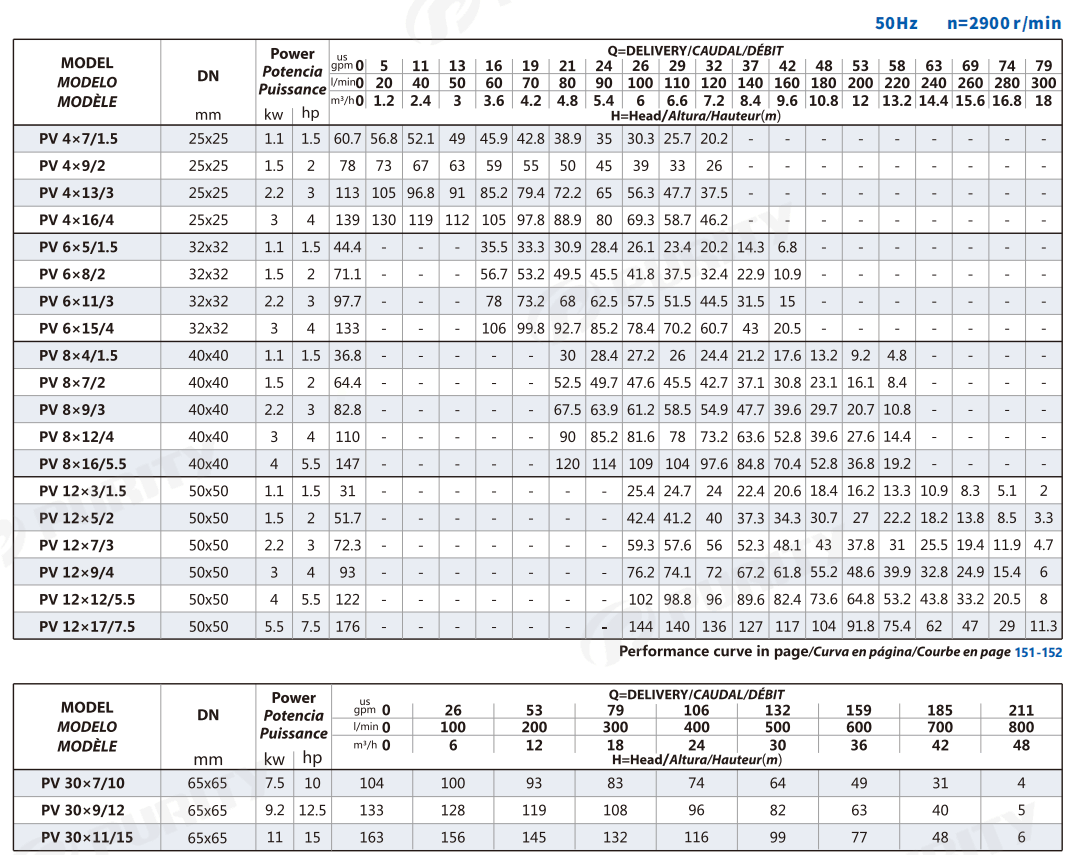

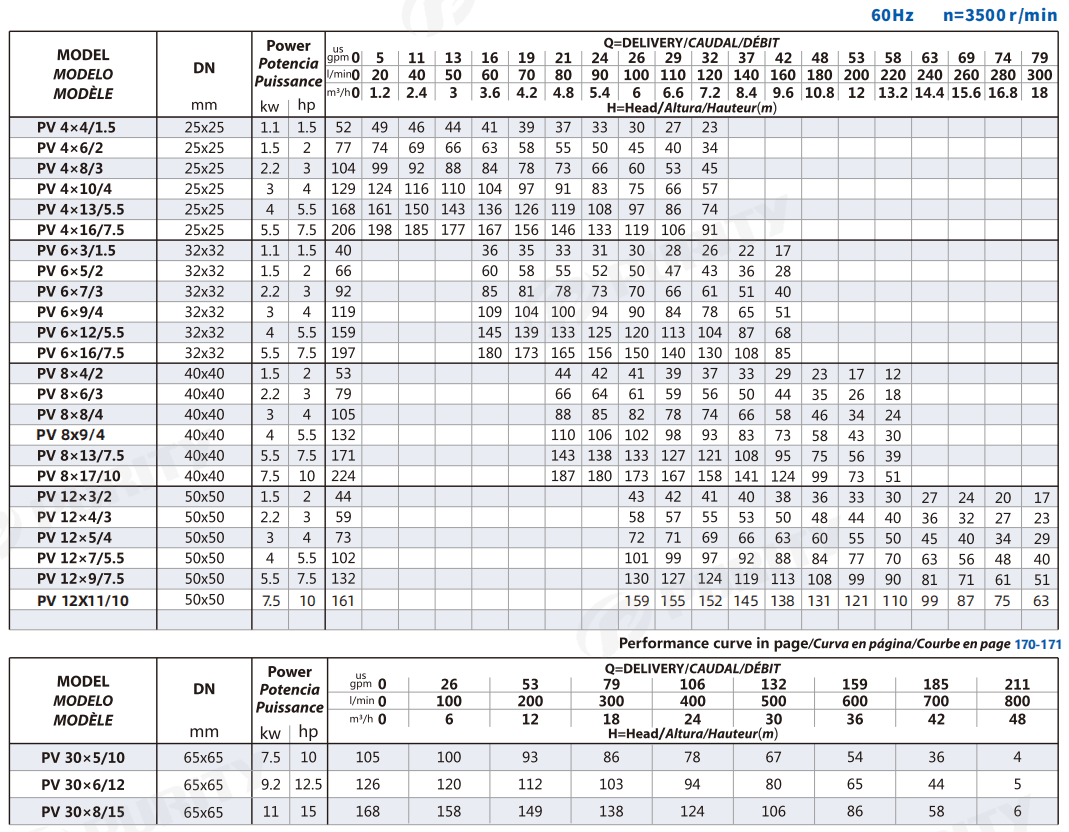

TECHNICAL DATA


Contact Us


Please send inquiry to mina@purityfire.com for prompt reply !


TECHNICAL DATA


DIMENSION AND WEIGHT


Production Line




Packaging & Shipping



Our Exhibition



Certifications
