PXZ

الذاتي فتيلة مضخة الطرد المركزي

ملاحظة فنية
· رواية الذاتي فتيلة مضخة الطرد المركزي
· نقاء التصميم الأصلي ( براءات الاختراع )
· المحركات الكهربائية مربع ومحركات دائرية متوفرة
· YE3 عالية الكفاءة للسيارات ، وحماية الصف IP55 واو
· غلاف المضخة مع طلاء مضادة للتآكل
· الفولاذ المقاوم للصدأ ايسي 304 أو الحديد الزهر المكره
· رمح مصنوع من الفولاذ المقاوم للصدأ ايسي 304 أو الحديد المجلفن
· مدخل ومخرج في مجموعة العشرين الخيوط
· محامل NSK عالية الجودة ، وارتداء مقاومة الأختام الميكانيكية
3D PRODUCT CHAT NOW


NEW/NUEVO


TECHNICAL DESCRIPTION

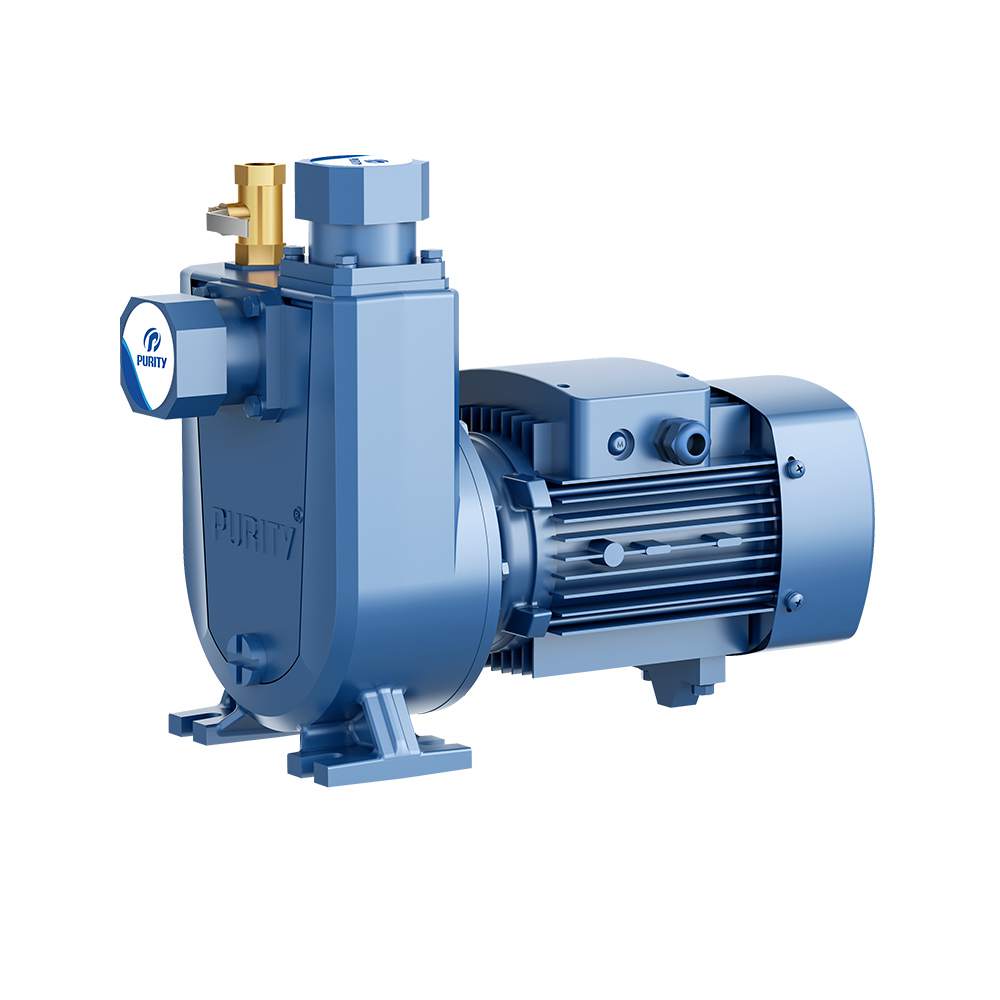

· New self-priming centrifugal pump
· Original design by PURITY (patented)
· Both square motor & round motor available
· YE3 high efficient motor, with protection IP55 class F
· Pump case with anti-corrosive coating
· Impeller in stainless steel AISI 304 or cast iron
· Shaft in stainless steel AISI 304 or galvanized iron
· Suction and discharge port in G20 thread
· Quality NSK bearing, wear resistance mechanical seal



APPLICATIONS / APLICACIONES
· Suitable for use with liquids that are not chemically aggressive towards the materials from which the pump is made.
· The self-priming centrifugal pumps are recommended for use in water supply systems,washing systems, pressure systems, irrigation pumps, liquids transfer.


USING LIMITS
·Liquid temperature between -10℃ and +120℃
·Ambient temperature up to +50℃
·Max. working pressure 16 bar
·Continuous service S1


PATENTS / PATENTES
· Registered model PXZ
· Registered Patent Design no 201530016935.4




NEW/NUEVO


TECHNICAL DESCRIPTION
· New self-priming centrifugal pump
· Original design by PURITY (patented)
· Both square motor & round motor available
· YE3 high efficient motor, with protection IP55 class F
· Pump case with anti-corrosive coating
· Impeller in stainless steel AISI 304 or cast iron
· Shaft in stainless steel AISI 304 or galvanized iron
· Suction and discharge port in G20 thread
· Quality NSK bearing, wear resistance mechanical seal


APPLICATIONS / APLICACIONES
· Suitable for use with liquids that are not chemically aggressive towards the materials from which the pump is made.
· The self-priming centrifugal pumps are recommended for use in water supply systems,washing systems, pressure systems, irrigation pumps, liquids transfer.


USING LIMITS
· Liquid temperature between -10℃ and +120℃
· Ambient temperature up to +50℃
· Max. working pressure 16 bar
· Continuous service S1



PATENTS / PATENTES
· Registered model PXZ
· Registered Patent Design no 201530016935.4
