[ WQV ] تنقية مياه الصرف الصحي مضخة دوامة قطع مضخة مياه الصرف الصحي

ملاحظة فنية
· تصميم مضخة حريق جديدة
· نقاء التصميم الأصلي ( براءات الاختراع )
· المحركات الكهربائية مربع ومحركات دائرية متوفرة
· YE3 عالية الكفاءة للسيارات ، وحماية الصف IP55 واو
· غلاف المضخة مع طلاء مضادة للتآكل
· المكره مصنوعة من الفولاذ المقاوم للصدأ ايسي 304 أو النحاس الأصفر
· رمح مصنوعة من الفولاذ المقاوم للصدأ ايسي 304
· حفزت شفة عكس مع البراغي والمكسرات وغسالات
· محامل NSK عالية الجودة ، وارتداء مقاومة الأختام الميكانيكية
· سعة 80-5000 US GPM نموذج
3D PRODUCT CHAT NOW


TECHNICAL DESCRIPTION

New cutting submersible sewage pumps
Equipped with vortex alloy impeller with 48HR(hardness)
Better hydraulic characteristics
Pump case in heavy gauge robust cast iron HT250
Casing resistant to abrasion and long-lasting
YE3 high efficient motor, with protection IP68 class F
Shaft in stainless steel AISI 304 or galvanized iron
Discharge port with bolts,nuts and gastkets
Quality NSK bearing, wear resistance mechanical seal

APPLICATIONS
The WQV series pumps, manufactured from heavy gauge robust cast iron,resistant to
abrasion and long-lasting, are equipped with a VORTEX impeller and are therefore
suitable for draining dirty, filthy and refluent water,and water mixed with putrid mud.
They are suitable for installation in sewers,tunnels,canal,excavations,underground car parks,etc.

USING LIMITS
Temperature of the liquid to +40 °C
10 m maximum immersion depth
(with a sufficiently long power cable)
Solids passage:
from 25mm to 65mm

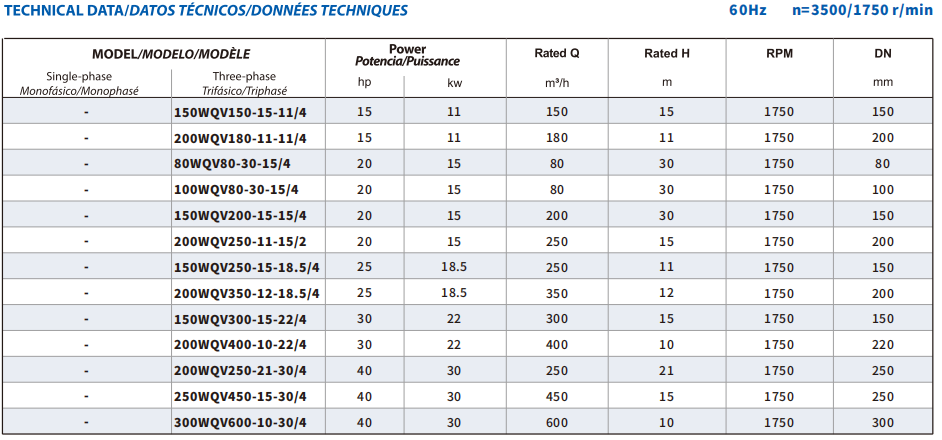

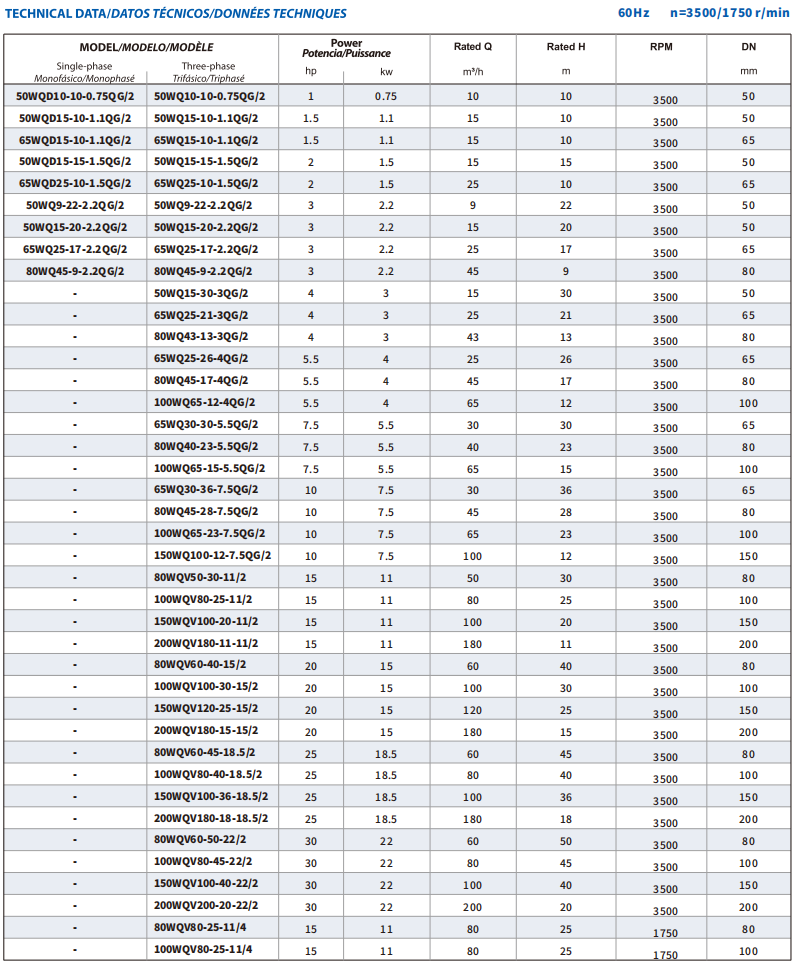

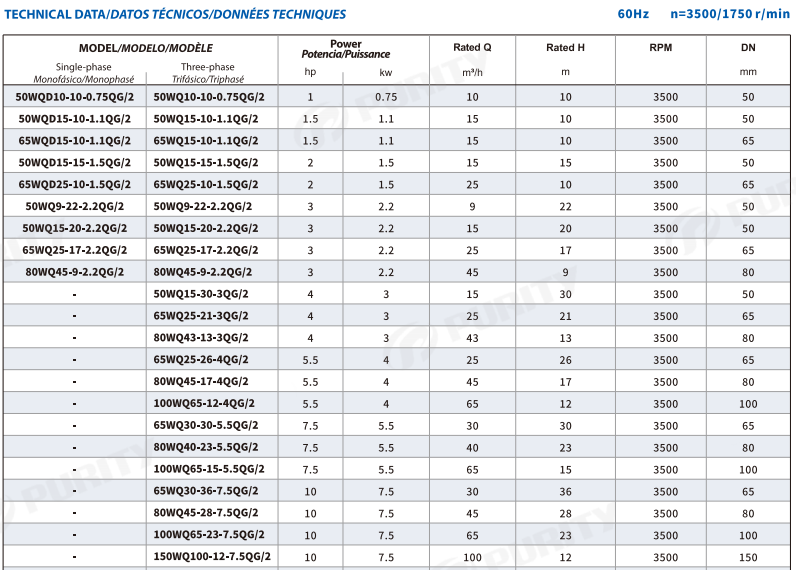

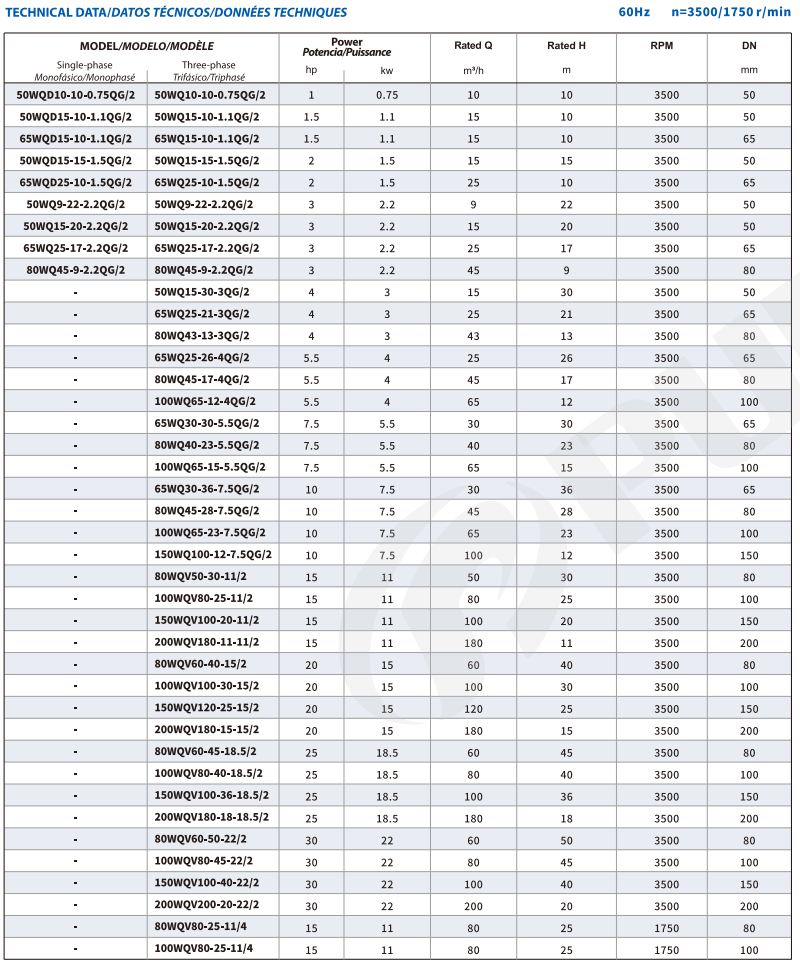

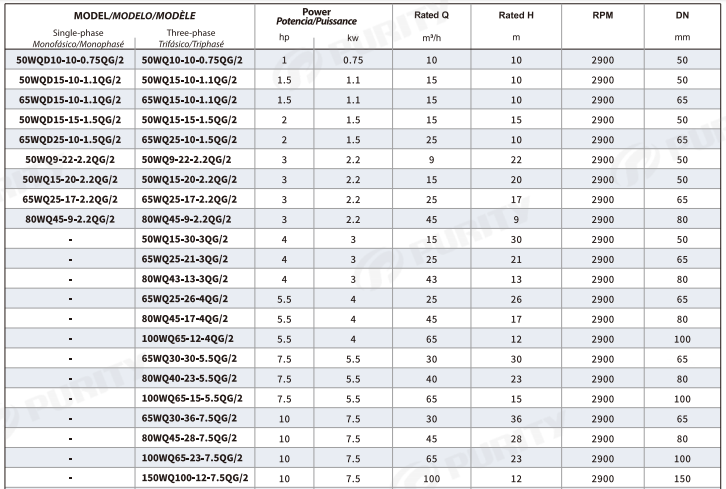

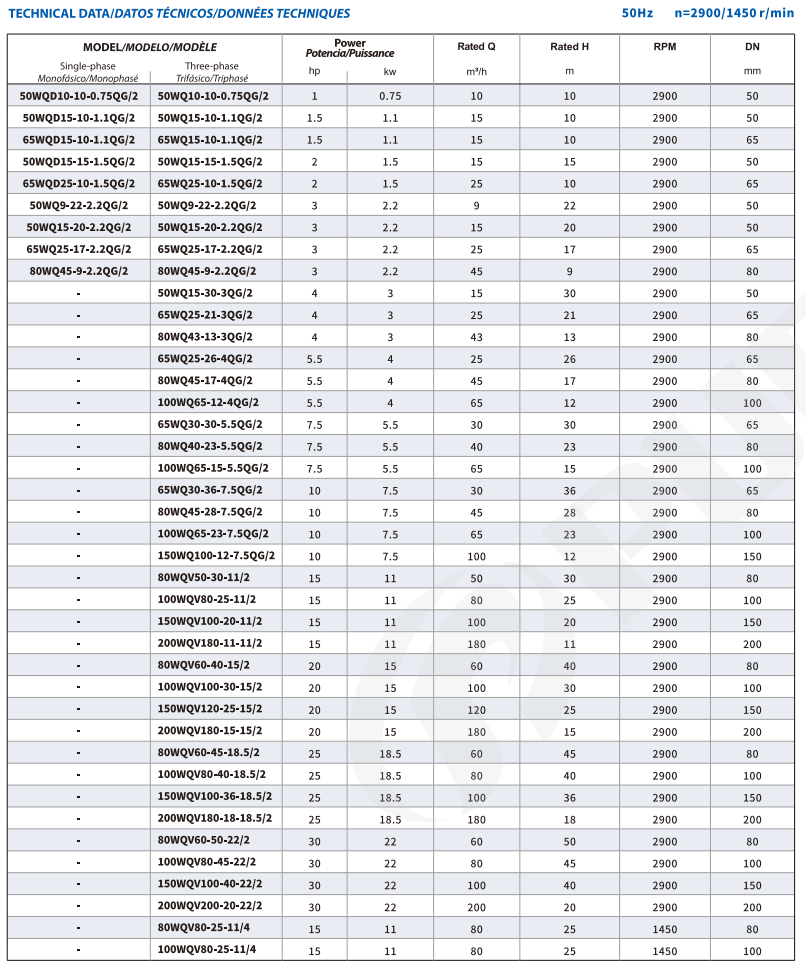

TECHNICAL DATA


Other Sizes  Can Provide On Request.


Contact Us



Please send inquiry to mina@cnpurity.com for prompt reply !

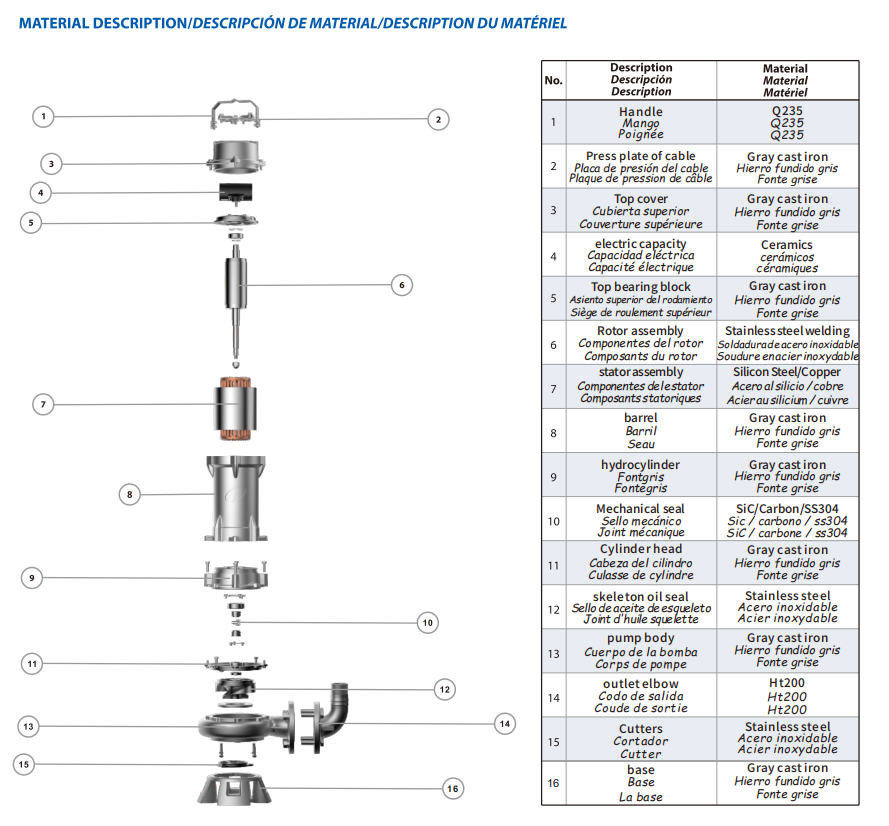

MATERIAL DESCRIPTION






Purity Pump Co., Ltd. is a specialized manufacturer and supplier of high-quality

industrial pumps, exporting to global market in competitive prices. We provide

variousreliable pumps for projects.Our main products are centrifugal pumps, fire

pumps and system, industrial pumps and agricultural pumps.


Our products and services have been deployed in more than 55 countries.

And we supply water pumps for many large projects like National Olympic Stadium.

We also supply centrifugal and fire pumps to some well-known pump companies all

over the world.
